Squadron 2.0 Ditch Lights for the Bronco — Choose Your Output and Wiring

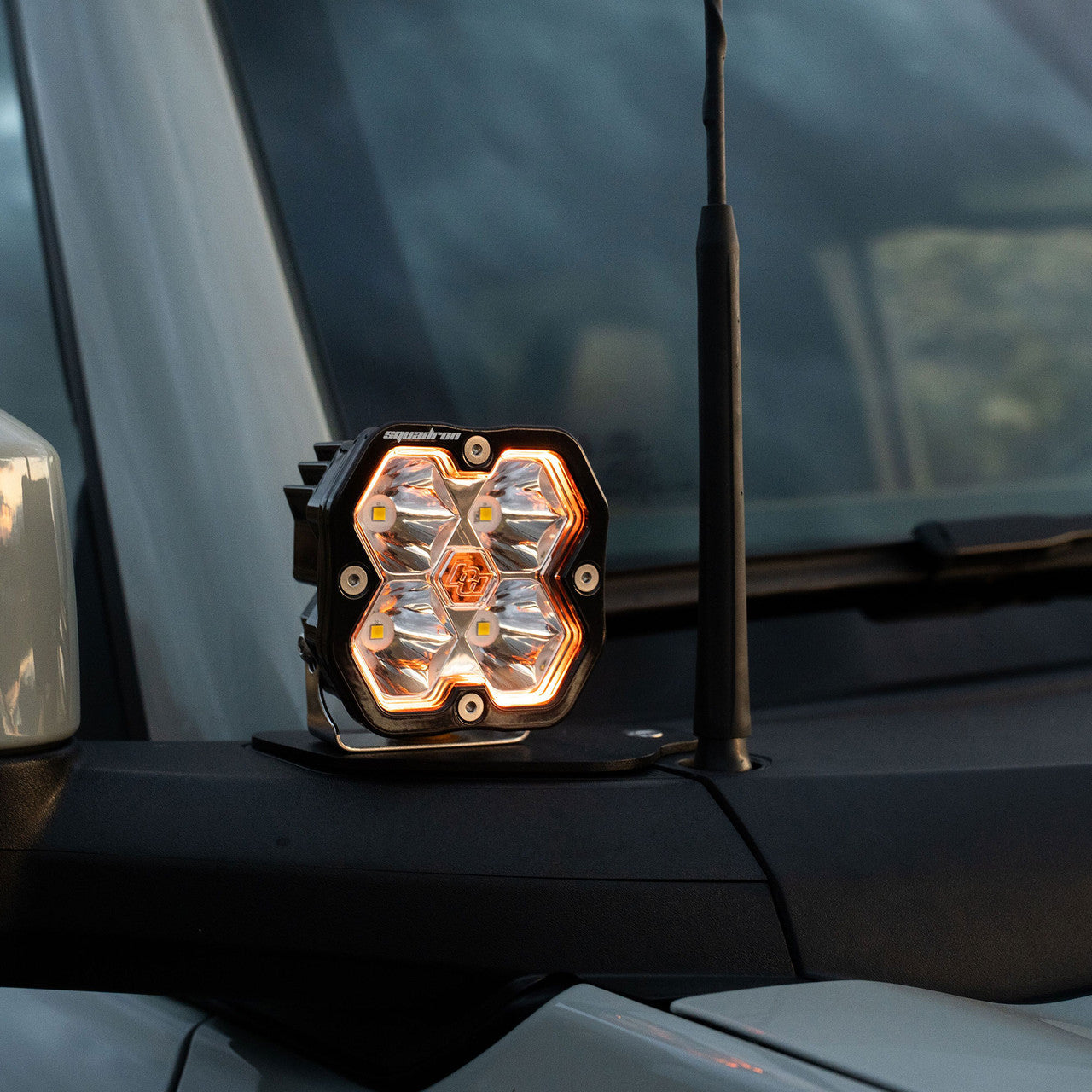

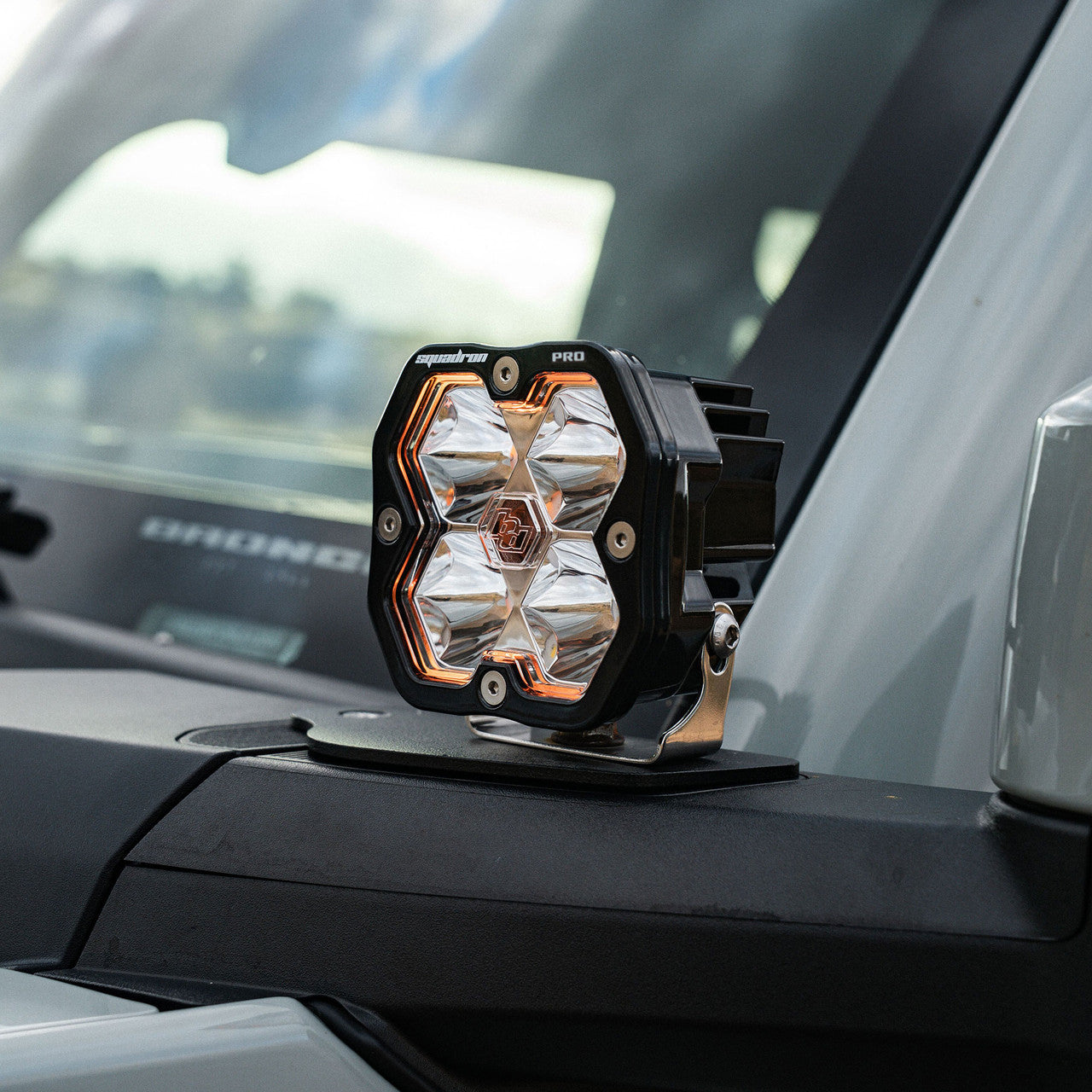

The Baja Designs Squadron 2.0 A-Pillar Ditch Light Kit puts the next-generation Squadron platform in the ditch light position on the 2021+ Ford Bronco and 2022+ Bronco Raptor. The vehicle-specific brackets mount to the factory A-pillar locations without drilling, and the Spot beam optic is selected for the forward throw a ditch-position light needs to fill the lateral shadow zones that headlights leave behind on trail.
Two light tiers and two wiring options give you four configurations. The Sport 2.0 (3,200 lumens / 30W) is the right choice for most builds — excellent output at a lower price point. The Pro 2.0 (5,921 lumens / 65W) delivers maximum output for serious rigs. The Standard harness includes a toggle switch. The Upfitter harness integrates with the Bronco's factory upfitter switch panel for a cleaner, no-toggle install.
Sport 2.0 vs. Pro 2.0
|
Squadron Sport 2.0 |
Squadron Pro 2.0 |
| Output |
3,200 raw lumens |
5,921 raw lumens |
| Power |
30W / 2.2A |
65W / 4.7A |
| Best for |
Trail & dual-use builds — excellent value |
Maximum output — serious off-road rigs |
| Standard price |
$375.95 |
$571.95 |
| With Upfitter |
$380.95 |
$575.95 |
Standard vs. Upfitter Harness
-
Standard — includes toggle switch for manual on/off control
-
With Upfitter — integrates with the Bronco's factory upfitter switch panel. No toggle, cleaner install. Requires factory-equipped upfitter switches.

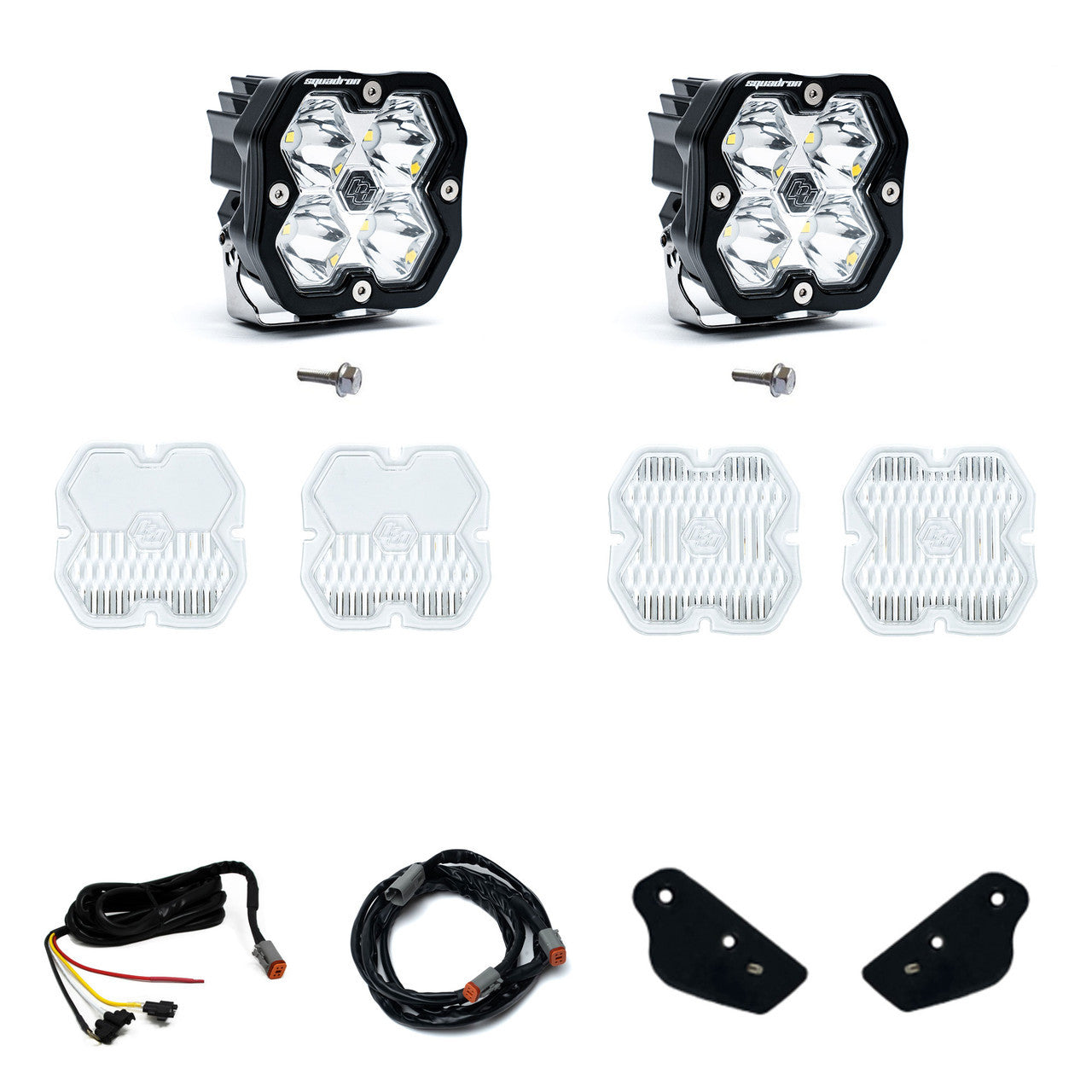

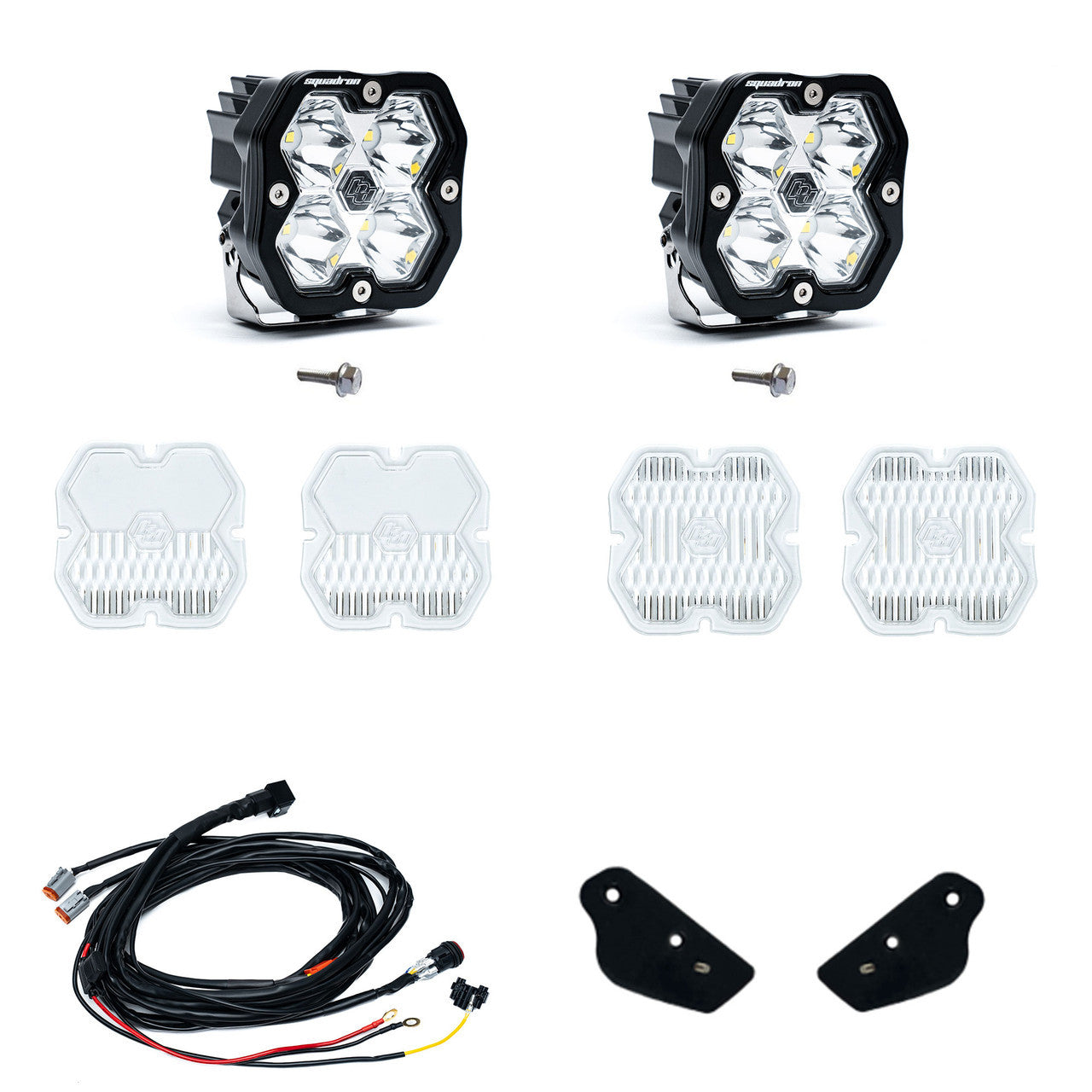

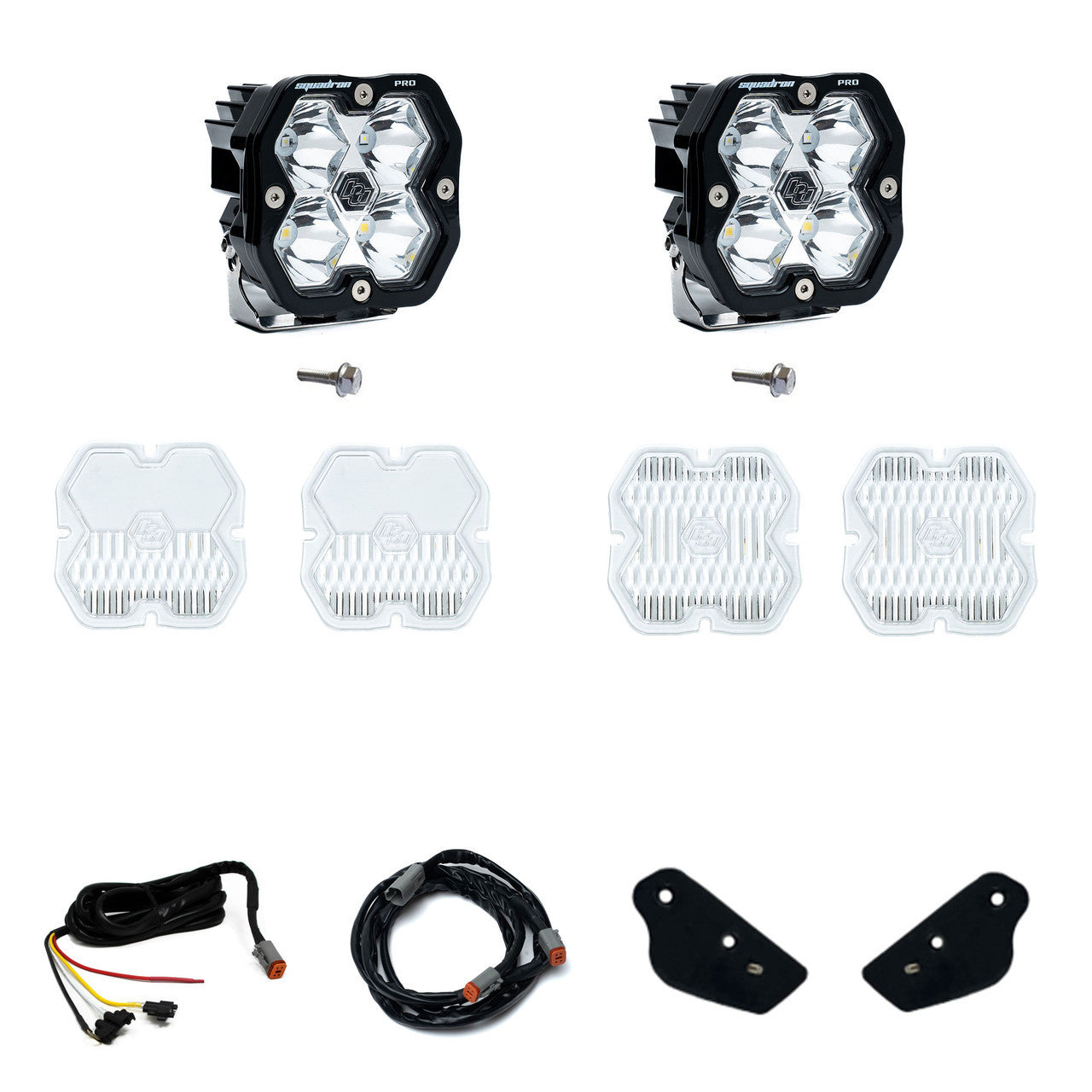

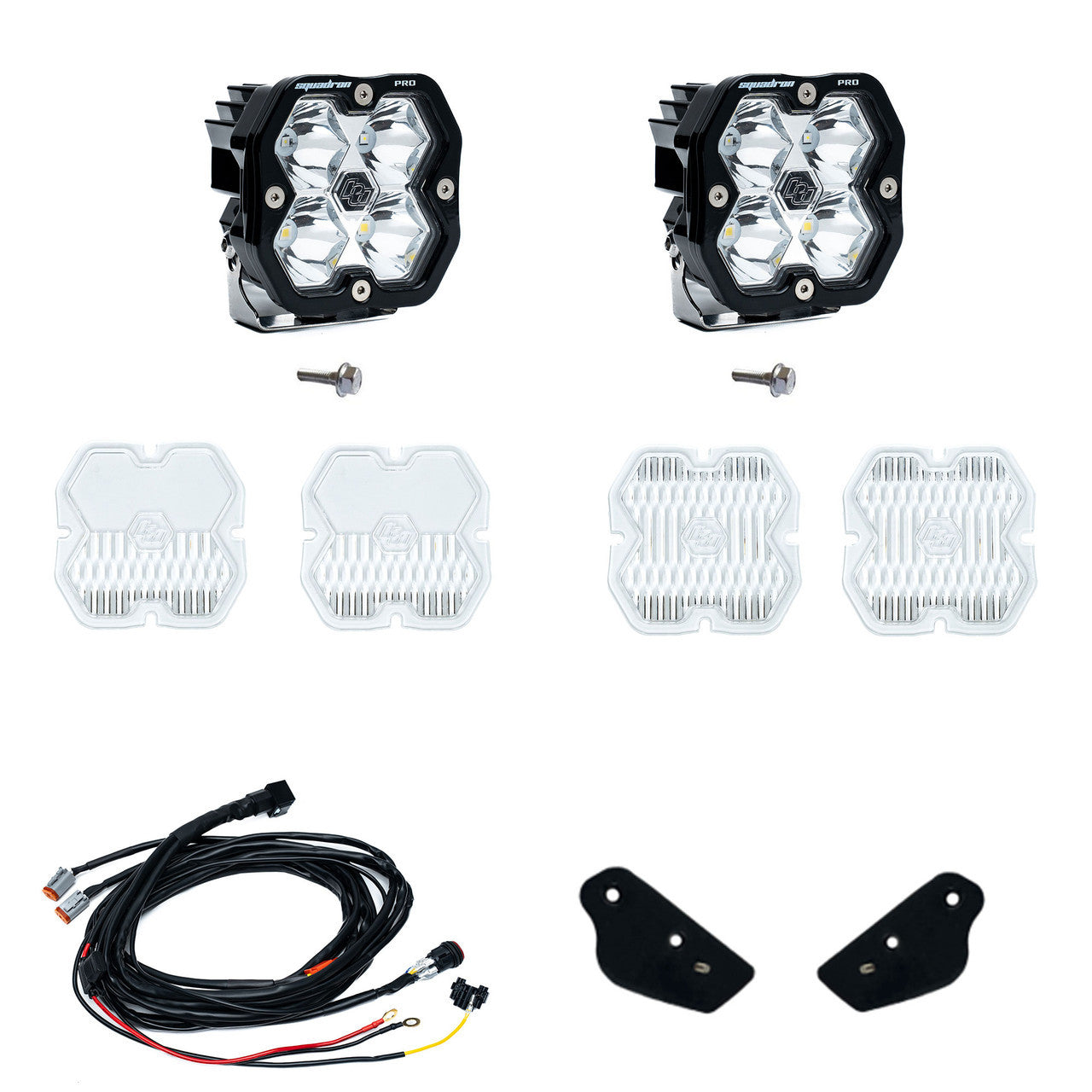

Kit Includes
- (2x) Squadron 2.0 Sport or Pro lights — Spot beam, Clear
- (1x) Toggle switch harness (Standard) or Upfitter harness
- (2x) Bronco/Raptor A-pillar mounting brackets
- All necessary hardware
Fitment
Fits: 2021-2026 Ford Bronco and 2022-2024 Bronco Raptor (all trims). Vehicle-specific A-pillar brackets — no drilling required.
FAQ
Does this fit the Bronco Raptor?
Yes — this kit is confirmed for the 2022-2024 Bronco Raptor as well as all standard Bronco trims (2021-2026).
Do I need the Upfitter version if my Bronco has factory upfitter switches?
Only if you want the ditch lights controlled through the factory switch panel without a toggle. The Standard version with a toggle works on all Bronco configurations regardless of upfitter switch availability.
Sport 2.0 or Pro 2.0 for trail use?
Sport 2.0 is excellent for most trail builds — 3,200 lumens in the ditch position is a meaningful upgrade. Pro 2.0 is for builds where maximum output ceiling matters. Both use the same Spot optic and vehicle-specific mounting hardware.
What is uService?
uService means the lenses and clip-in reflectors are field-replaceable without removing the lights from the brackets. You can swap beam patterns or replace a damaged lens without a full reinstall.
The Next Generation of Baja Designs Lighting
 |
High Output Performance
The Squadron 2.0 Sport produces 3,200 lumens at 30W. Next-generation optics throw light farther and wider while minimizing wasted spill, delivering more usable illumination exactly where you need it.
For drivers demanding maximum output, the Squadron 2.0 Pro throws 5,921 lumens at 65W a 41% increase in power over previous generation. Both configurations operate on 12-36V systems and are available in harness and non-harness pair options.
|
 |

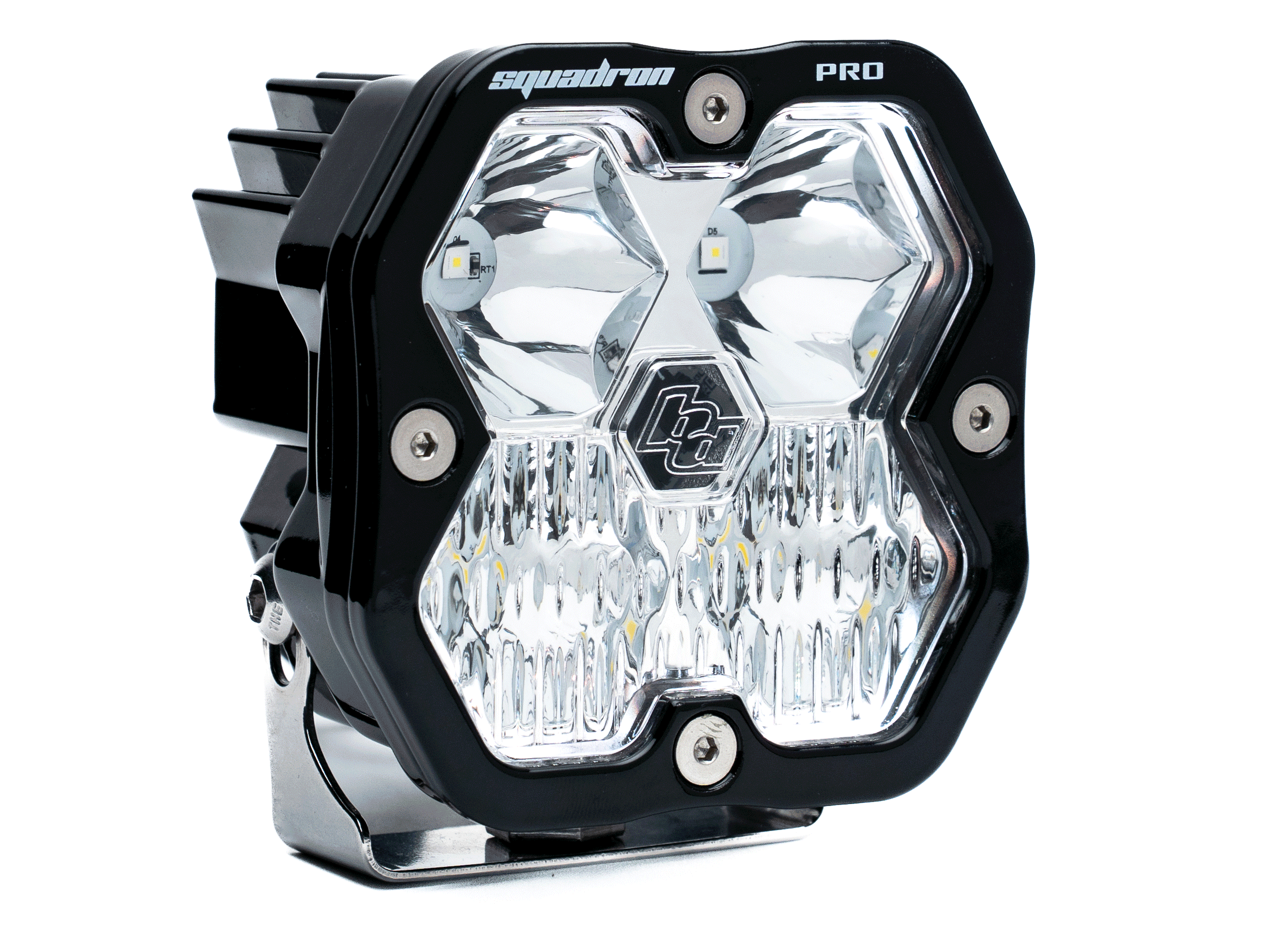

Color Selectable Backlight
The Squadron 2.0 features an integrated 9-color selectable backlight. Drivers can toggle between red, green, blue, magenta, cyan, amber, yellow, pink, and white, all configurable through the included harness. Color settings are retained when the light is powered off, so your setup is always ready when you are.
|
 |
Improved uService Functionality:
Updated uService® components include clip-in reflectors that stay secure during lens swaps and a new gasket design that improves sealing and long-term protection from the elements. A rugged 4-pin Deutsch connector replaces the previous standard for enhanced durability.
Every detail has been upgraded while maintaining the proven reliability that defines Baja Designs.
|
 |
ClearView Optical Control:
The Squadron 2.0 was engineered from the ground up drawing inspiration from the iconic Squadron and taking it to the next level through aesthetics, performance and useability. The Squadron 2.0 Pro features a modern exterior, next-generation optics, RGB back-light and new bracket design for increased vertical adjustability for precise aiming.
|
 |
Connectors to Handle Abuse
4-pin Deutsch-style connectors are now standard on every wire harness — weatherproof, vibration-resistant, and rated for the kind of punishment that kills cheap connectors.
|
