INEOS Grenadier Tire Relocation Bracket
Run larger tires on your Grenadier without the spare blocking your back door, rear wiper, or backup camera.
Go Bigger Without the Compromises

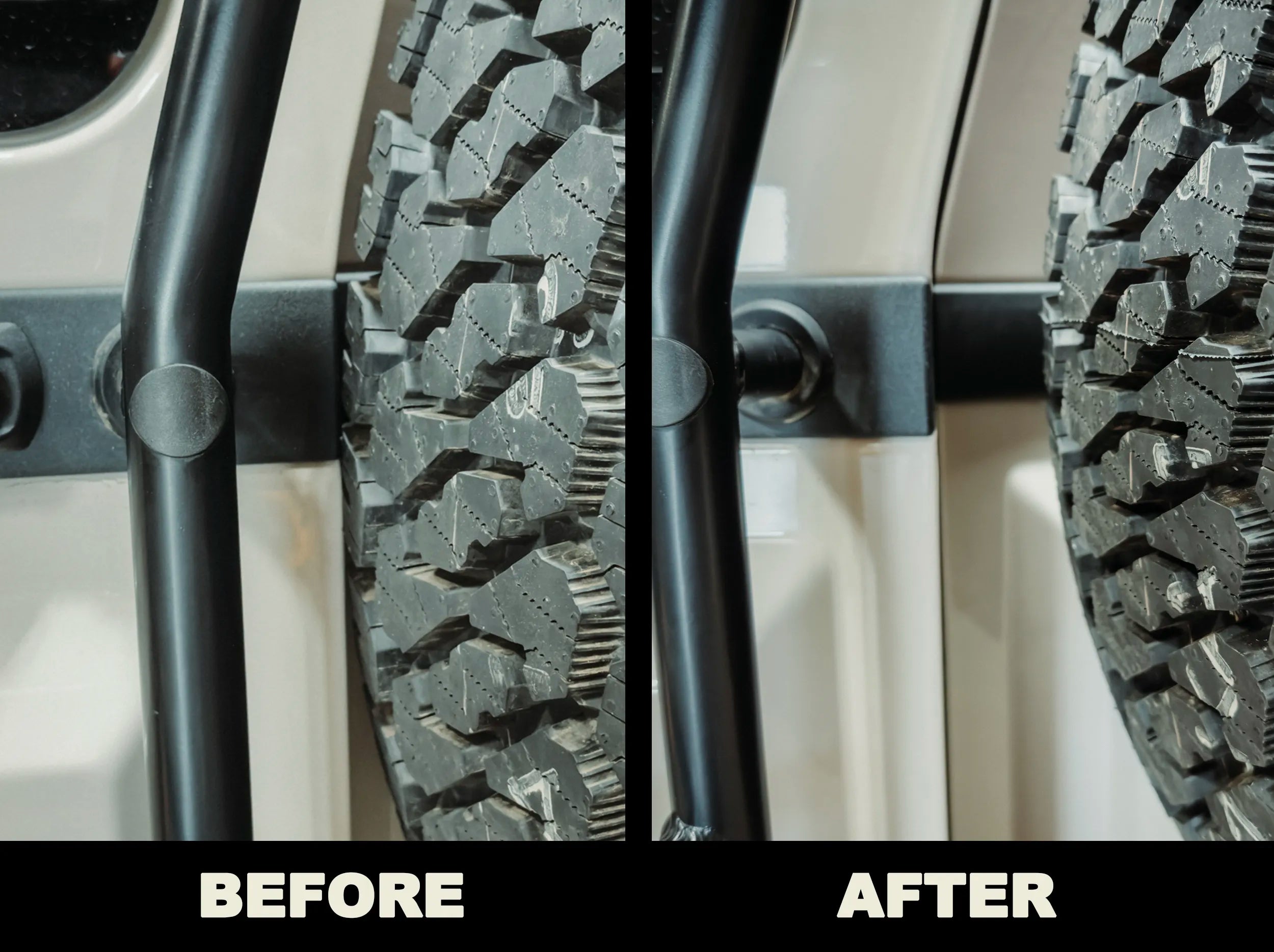

Stepping up to a larger spare on your INEOS Grenadier looks great — until the bigger tire blocks your back door, fouls the rear wiper, or hides the backup camera. Leitner's Tire Relocation Bracket solves all of it with a single bolt-on plate that shifts your spare 1¾" up, 1¾" right, and 1¾" outboard, opening up clearance for tires up to 37".
Because it keeps the wheel in its original orientation, you don't lose your factory spare tire cover or storage box — everything works exactly like it did from the factory, just with more tire.
|
|
|
Built to Take a Beating

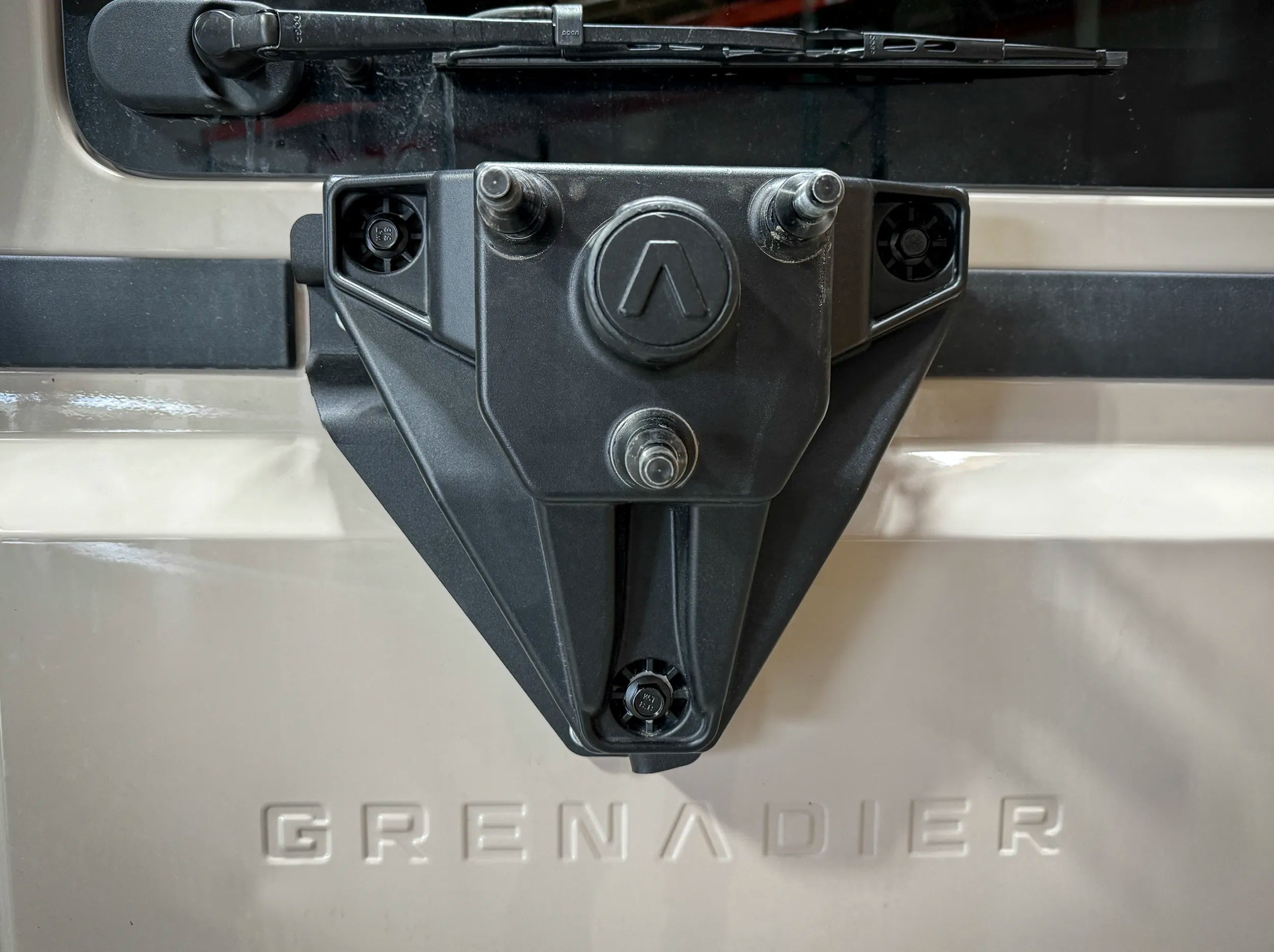

This isn't a flimsy spacer. The bracket is cut from heavy-gauge steel, gold zinc-plated and powder-coated for corrosion resistance, and torqued down with Grade 10.9 black Zi-Ni-plated fasteners. It's designed, engineered, and manufactured in the USA by Leitner Designs to hold a full-size spare securely on and off the trail.
|
⚙️ Installation — About 30 Minutes

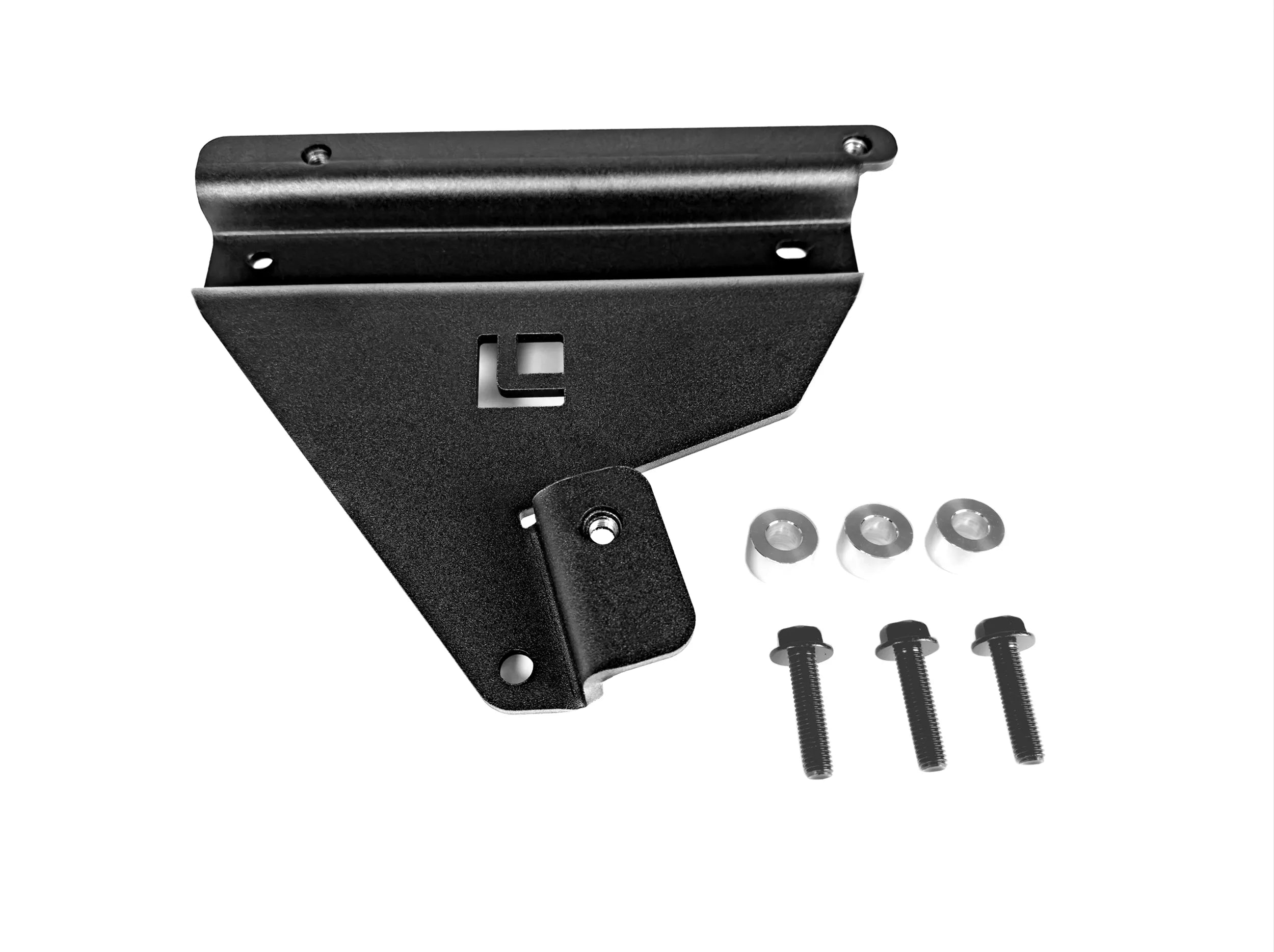

All hardware is included and the bracket bolts directly to your factory mounting points — no cutting or drilling. Most owners have it installed in about half an hour with basic hand tools.
Download the installation instructions (PDF) →
Specifications
| Max tire size |
37" |
| Relocation |
1¾" up, 1¾" right, 1¾" outboard |
| Material |
Heavy-gauge steel |
| Finish |
Gold zinc-plated & powder-coated |
| Fasteners |
Grade 10.9 black Zi-Ni-plated |
| Weight |
10 lbs |
| Part # |
00-GETRB-1765 |
| Origin |
Made in the USA |
|
|
Fitment note: Not compatible with wheel/tire combinations that have more than a 25mm offset, such as Vossen wheels. Keeps the wheel in its factory orientation — it does not flip the wheel rim-side out.
FAQ
|
What's the largest tire this supports?
Up to 37" with the spare relocated up, right, and outboard.
Does this flip my wheel rim-side out?
No. It keeps the wheel in its original orientation, so you can keep using your factory spare tire cover and storage box.
|
Will it work with any wheel?
Not with wheel/tire combinations over a 25mm offset, such as Vossen wheels. Otherwise it bolts right up.
How hard is the install?
All hardware is included and it bolts to factory points in about 30 minutes — no cutting or drilling.
|
