Leitner Designs ACS ROOF 3/4 Platform Rack
Ten years of Active Cargo System engineering, built into a roof platform for the INEOS Grenadier.
Strength That Doesn't Rely on the Rain Gutter

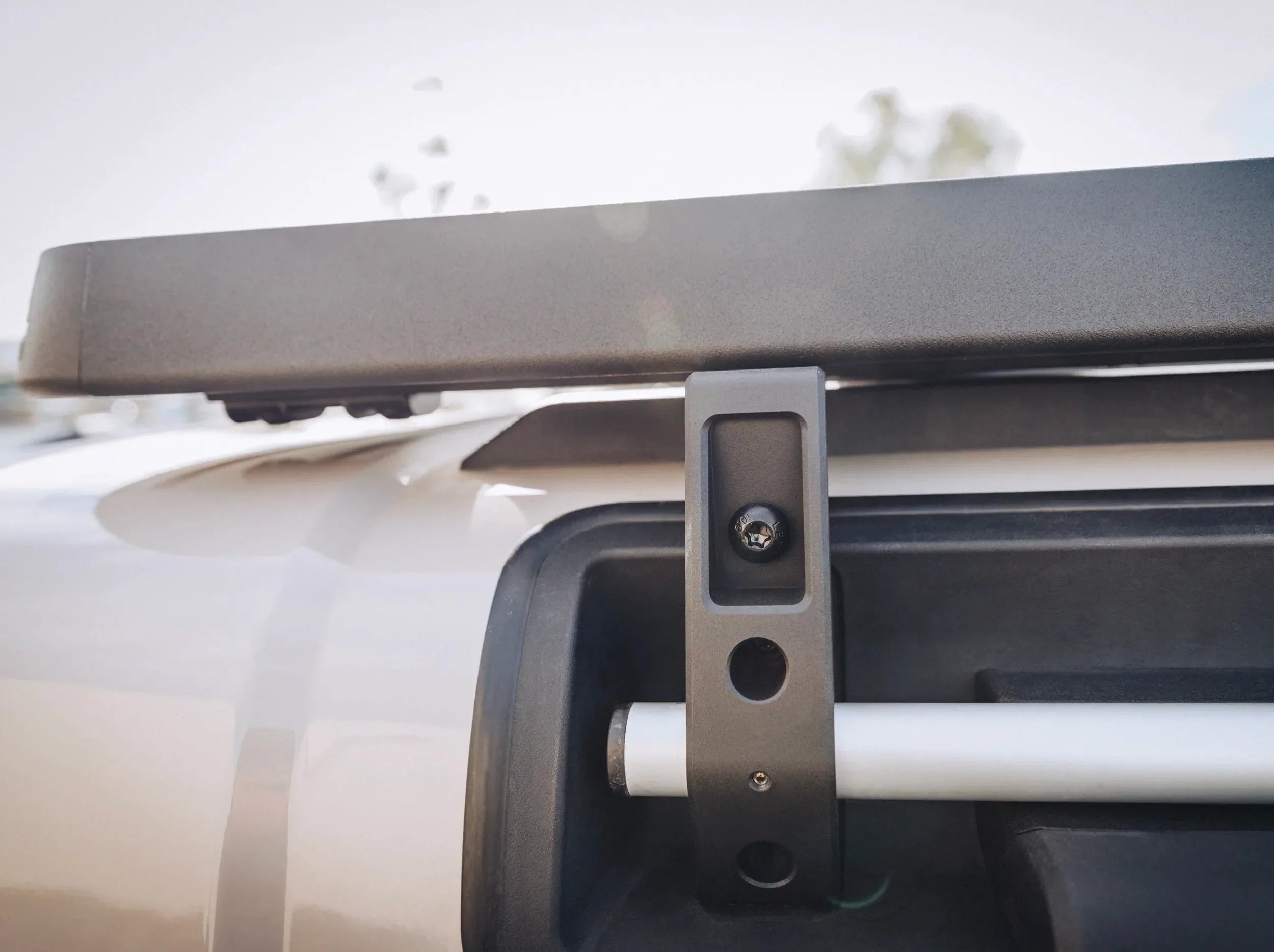

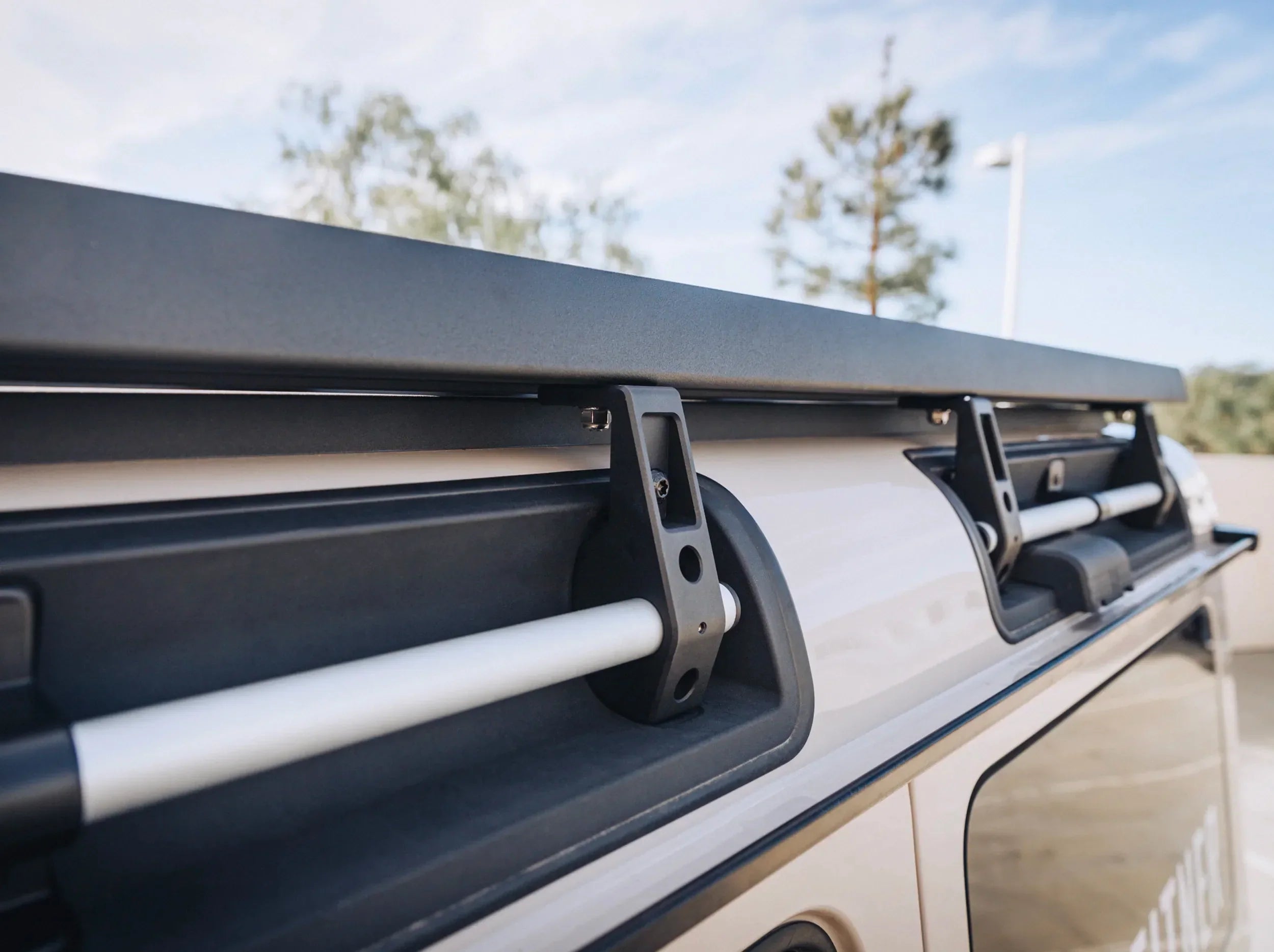

The ACS ROOF is the result of a decade of testing and hundreds of thousands of off-road miles behind Leitner's Active Cargo System. Its billet-machined 6061 T6 aluminum mounting bases bolt directly to the INEOS roll cage — not the factory rain gutter — for a rock-solid foundation that can take a beating.

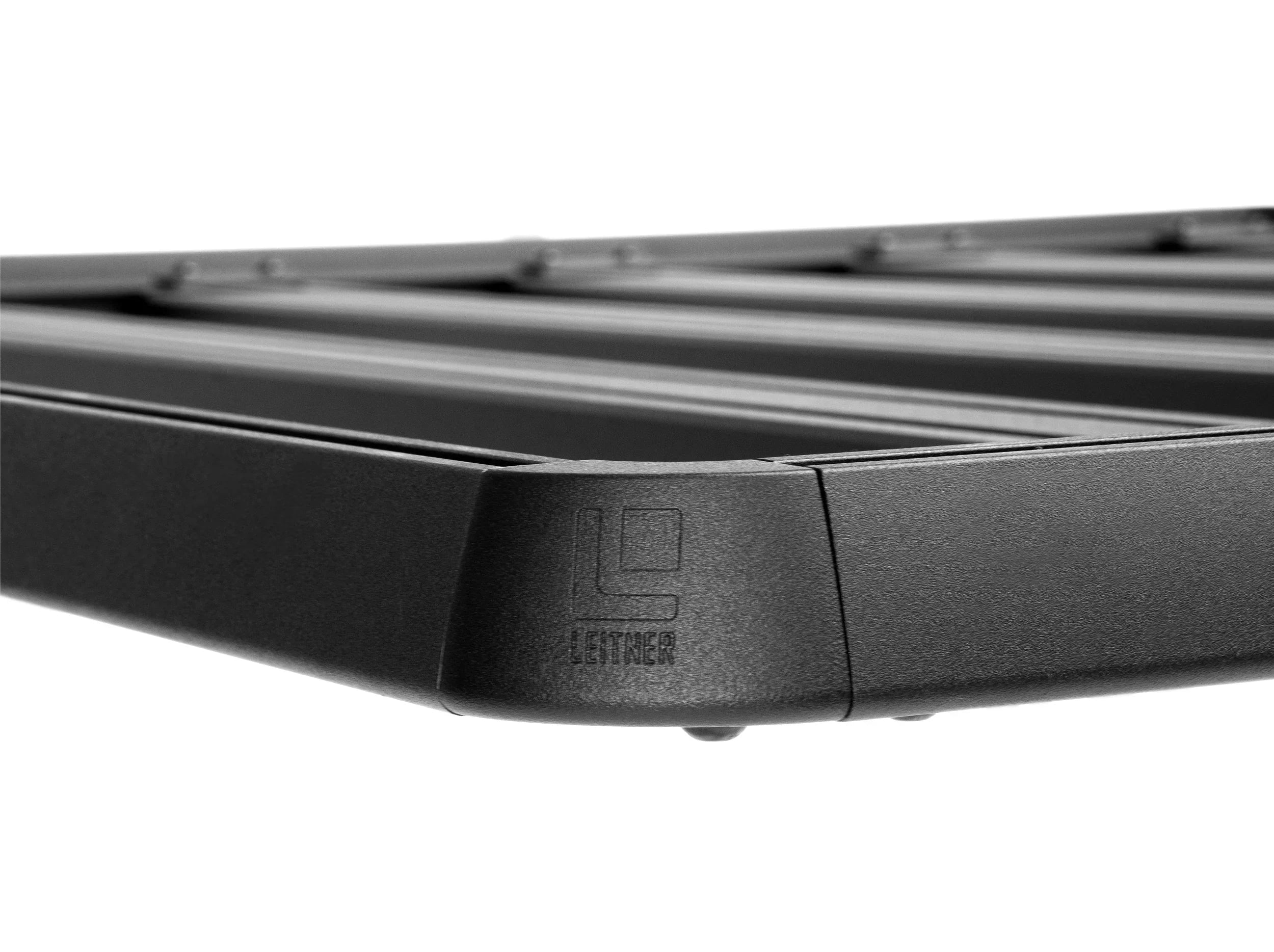

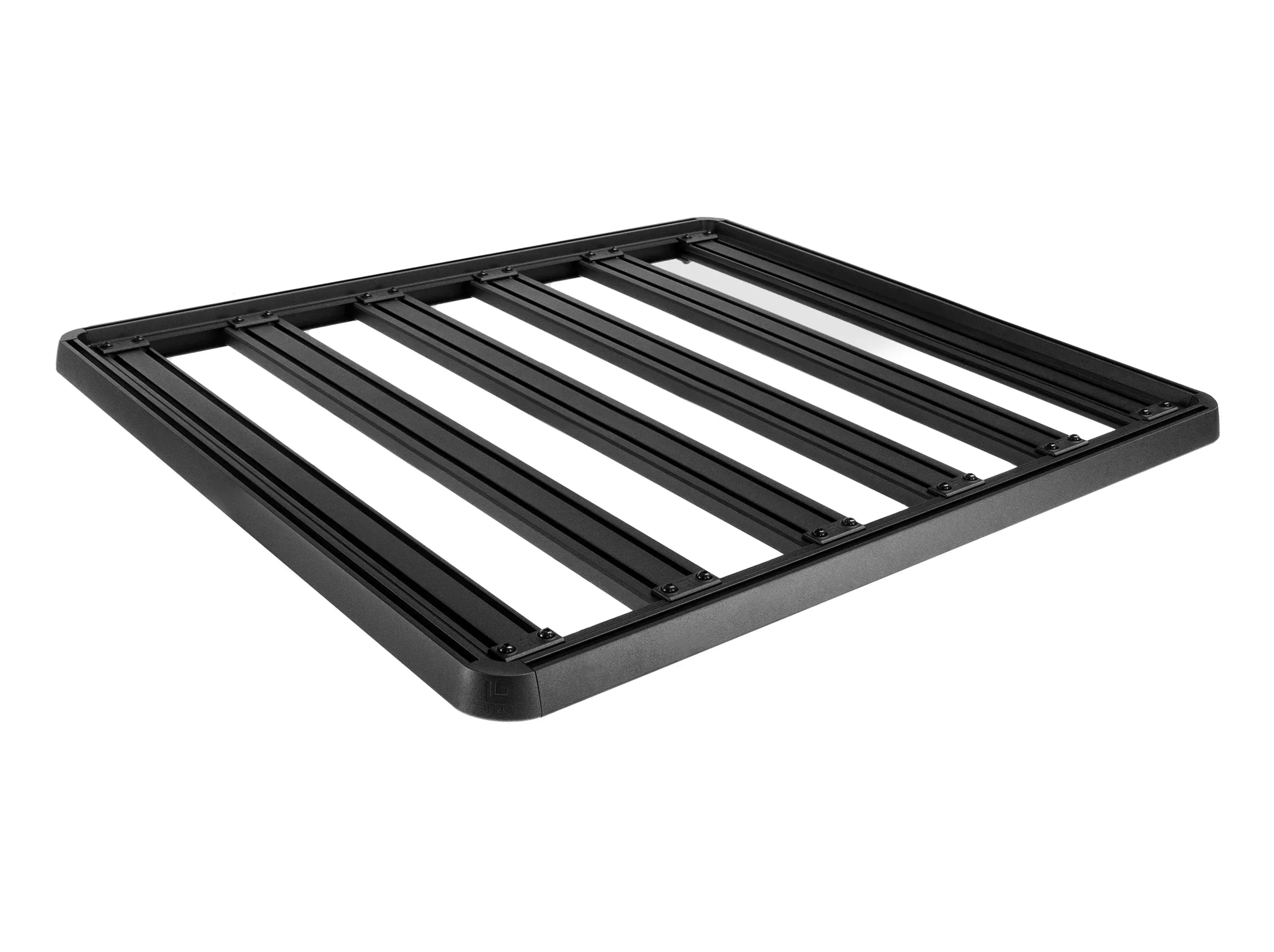

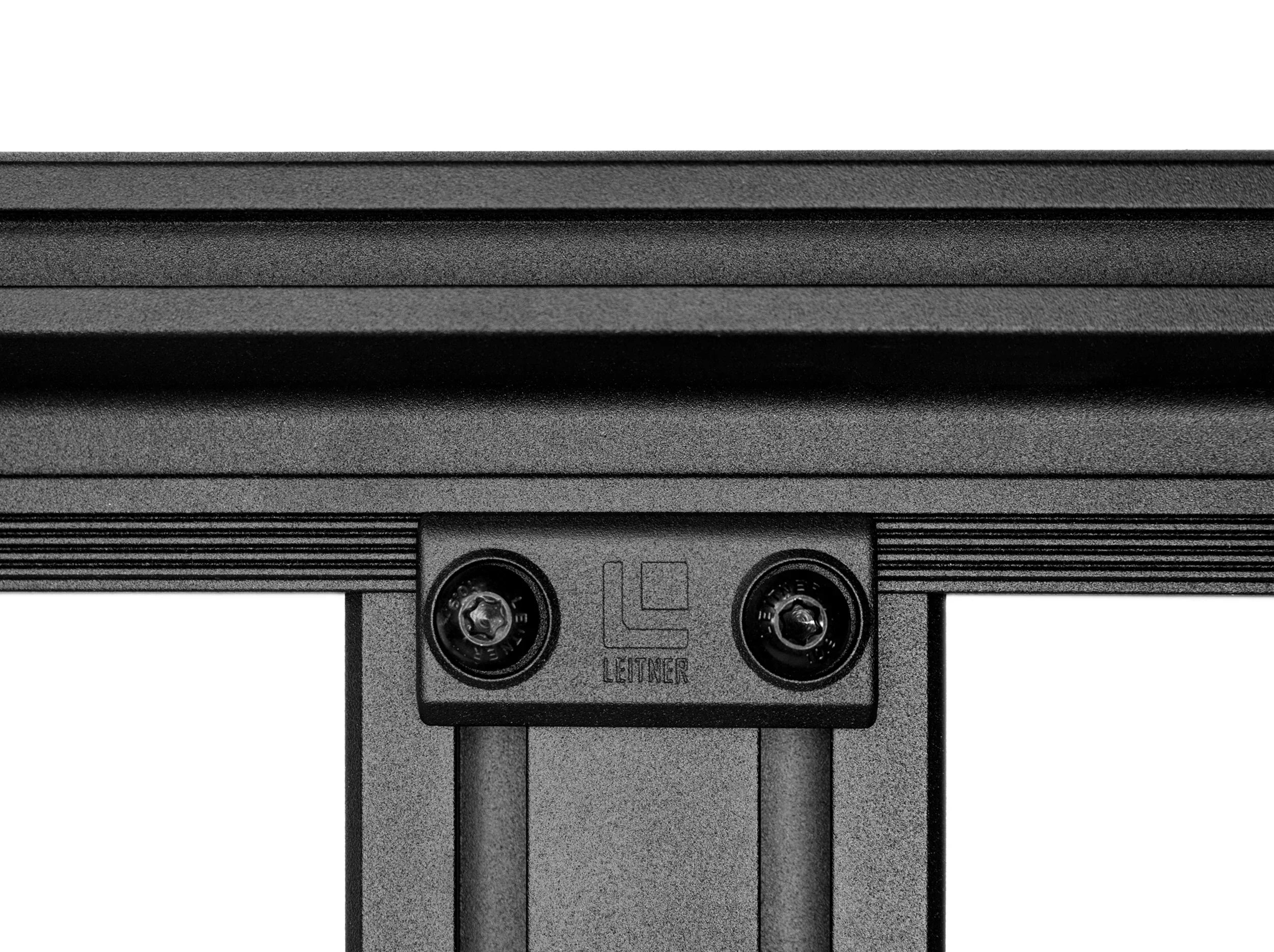

The platform itself uses 6063 T6 aluminum extrusion with heavy-duty 1.5mm–3.0mm multi-wall construction, finished in a zinc-plated dual-stage powder coat.
|
|
|
Carry Serious Gear
Rated for 250 lb dynamic off-road, 500 lb dynamic on-road, and 1,000 lb static while parked — enough for the heaviest rooftop tents. Adjustable sliding load bars drop into toothed channels so you can position and lock your gear exactly where you want it.
Only adds 2 inches of height, and an included wind noise reducer keeps highway drives quiet.
|
🔧 Universal Accessory Compatibility
The T-track mounting system fits a huge range of Rhino-Rack, Thule, and Yakima accessories. Pre-marked spots make mounting MAXTRAX, RotopaX, and the Leitner GearPOD ROOF straightforward. The whole system is fully upgradable as you add gear.
Specifications
| Material |
6063 T6 extrusion + billet 6061 T6 aluminum |
| Added height |
2 inches |
| Dynamic capacity (off-road) |
250 lbs |
| Dynamic capacity (on-road) |
500 lbs |
| Static capacity (parked) |
1,000 lbs |
| Fasteners |
Grade 10.9 black Zi-Ni coated |
| Finish |
Zinc-plated & dual-stage powder coat |
| Fitment |
2024+ INEOS Grenadier (Safari Window compatible) |
| Part # |
00-GR3-4R-1748 |
| Origin |
Made in the USA |
|
|
Mounting a tent? The 3/4 and Full-Length platforms are strong enough for the heaviest tents, but the low-profile design makes accessing the tent's securing fasteners nearly impossible. For hassle-free tent mounting, Leitner recommends the Roof Load Bar Adapter Kit.
FAQ
|
How much can it hold?
250 lb dynamic off-road, 500 lb dynamic on-road, and 1,000 lb static while parked.
Does it work with Safari Windows?
Yes. The 3/4 platform is designed to clear factory Safari Windows without interference.
|
Will my Rhino/Thule/Yakima gear fit?
Yes — the T-track mounting system is compatible with accessories from all three brands.
How much height does it add?
Just 2 inches, and it includes a wind noise reducer for quiet highway driving.
|
