Fox 3.2 Live Valve Internal Bypass — The Flagship Tacoma Suspension Upgrade

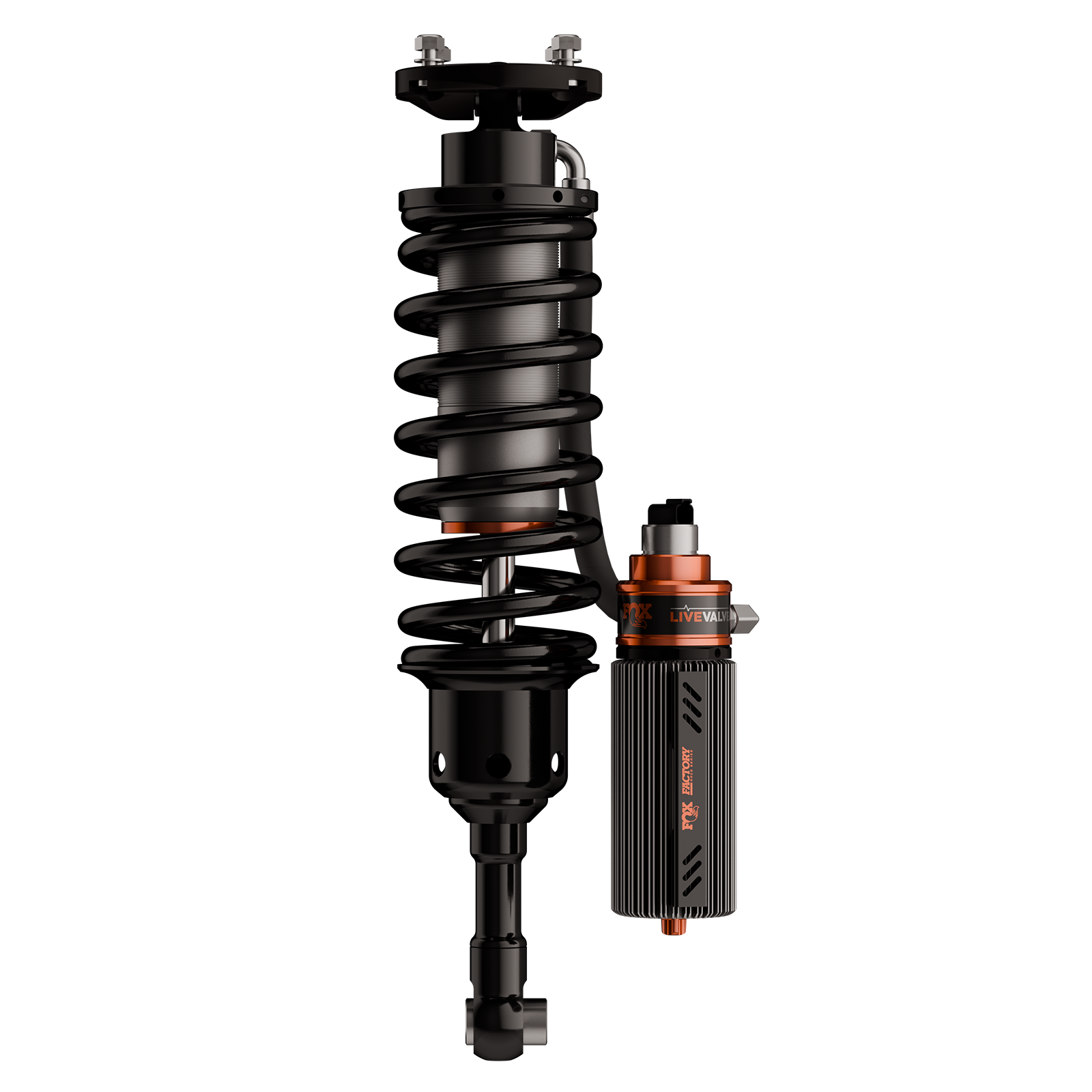

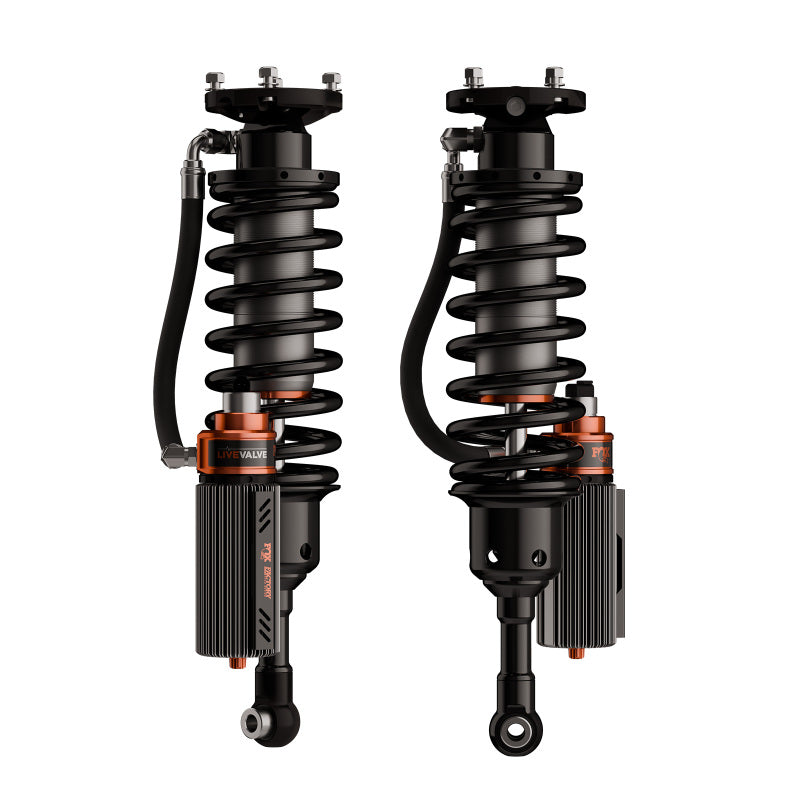

The Fox 3.2 Factory Race Series Live Valve Internal Bypass (IBP) Coilover Kit is the top of Fox's Tacoma suspension lineup. It combines three technologies in a single unit: the 3.2" large-body platform for maximum fluid volume and heat capacity, the Live Valve electronic adaptive damping system, and Internal Bypass bleed ports that allow fluid to flow around the piston at defined points in the stroke — delivering a more nuanced, tunable ride character that standard coilovers can't replicate regardless of their adjustment range.
Live Valve monitors terrain sensors and driver inputs 400 times per second, adjusting damping automatically. On road: firm, composed, controlled. On trail: open, compliant, articulate. No manual adjustment, no compromises between modes. The 2-3" lift spec is designed to work within the Tacoma's geometry — delivering the ground clearance and suspension travel you want without sacrificing Live Valve's performance envelope.
Internal Bypass — What It Does
A standard shock controls damping through its piston valving alone. An Internal Bypass shock adds bleed ports cut into the shock body wall at specific locations. When the shock shaft passes those ports, fluid can flow around the piston at a controlled rate — reducing damping force at that point in the stroke. The result: a softer initial stroke (small bump compliance) that transitions to full damping as the shock compresses further. You get better small-bump sensitivity without sacrificing control at larger inputs. In practical terms: the Tacoma absorbs parking lot bumps and road irregularities more smoothly while still being composed when you hit something significant.
Live Valve — 400Hz Adaptive Damping
-
Terrain sensors at all four corners — sample 400 times per second
-
On-road: damping firms automatically — less dive, less roll, better stability at speed
-
Off-road: opens up for articulation — tires stay planted, suspension uses full travel
-
Fully automatic — no driver input required; adapts faster than any manual adjustment
3.2 Platform Advantages
- Larger 3.2" body diameter vs 2.5" standard — more fluid volume, better heat dissipation over extended use
- More consistent performance on long desert runs or repeated trail use where heat soak affects smaller shocks

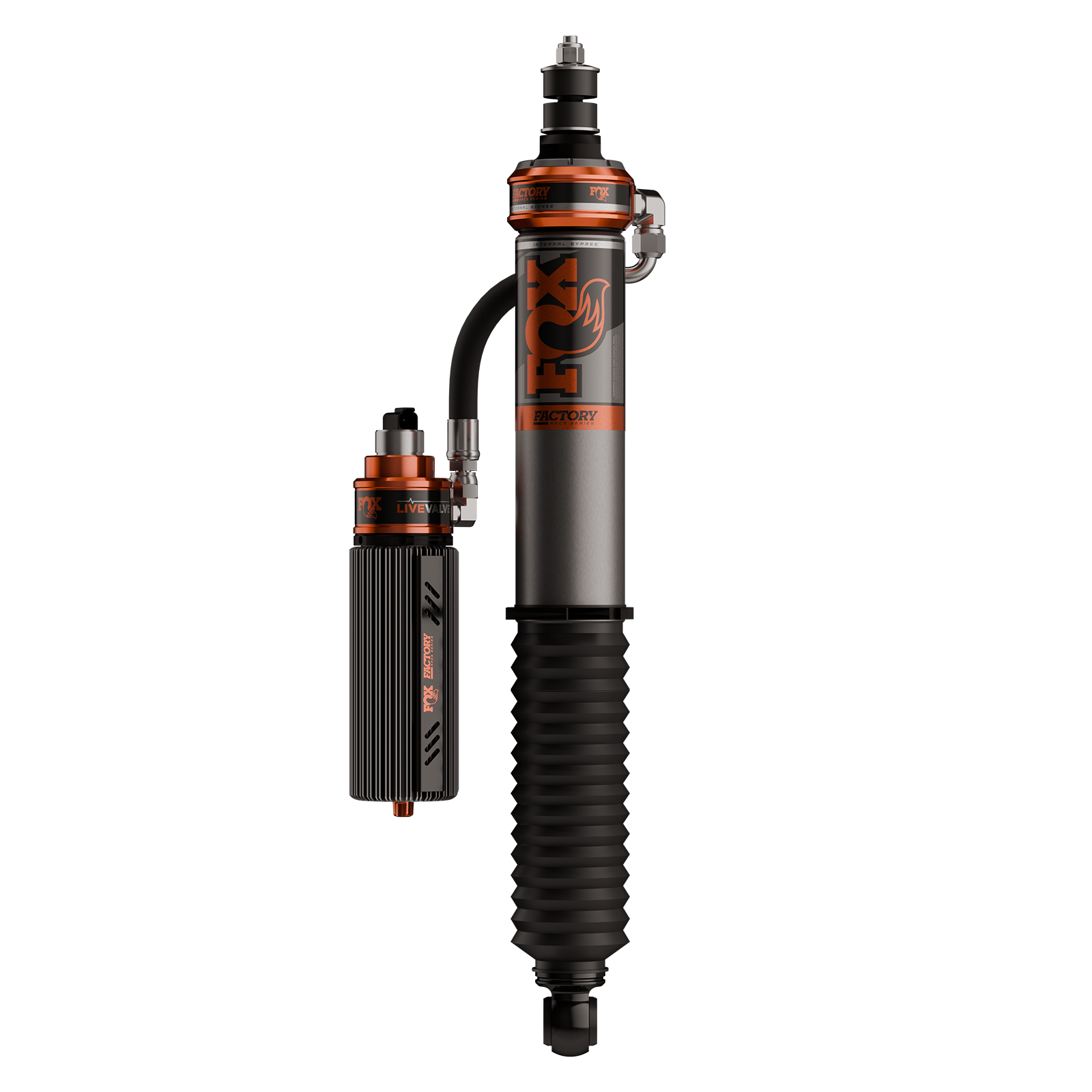

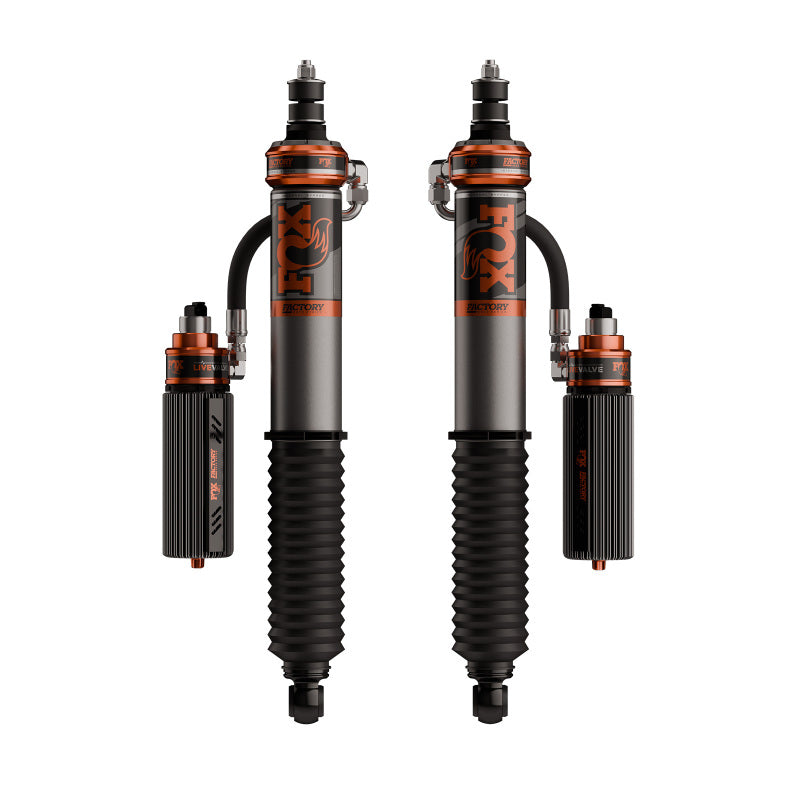

- External reservoir — additional fluid capacity beyond the main body
Specifications
- Part number: 883-06-259
- Body diameter: 3.2"
- Type: Internal Bypass (IBP)
- Damping: Live Valve — electronic adaptive, 400Hz
- Lift: 2-3"

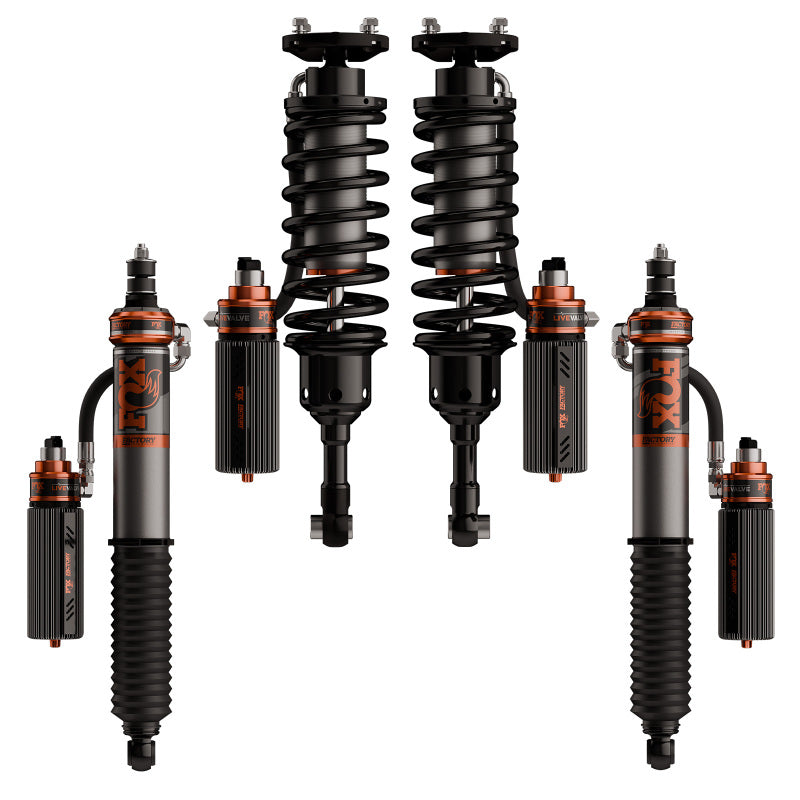

- Coverage: Full vehicle (all four corners)
- Warranty: Fox lifetime warranty
Fitment
Fits: 2024+ Toyota Tacoma (all trims). 2-3" lift configuration. Full vehicle coilover kit — front and rear.
FAQ
What is Internal Bypass and how does it differ from standard Live Valve?
Standard Live Valve coilovers control damping through electronically-actuated valving. Internal Bypass adds bleed ports cut into the shock body that allow fluid to bypass the piston at defined stroke positions — typically near the top of the stroke for small-bump sensitivity. The result is a more sophisticated ride character: softer over small inputs, controlled over large ones. IBP is the higher-performance option.
What is the difference between the 3.2 IBP and the standard 3.2 Live Valve?
The 3.2 Live Valve (883-06-249) is the standard version without internal bypass. This kit (883-06-259) adds IBP bleed ports for improved small-bump compliance. Both use the same 3.2" body and Live Valve system — the IBP adds a further layer of ride refinement at a higher price point.
Will this work without a tune?
Yes — Live Valve operates within the factory ECU parameters. No tuning required for the suspension system itself to function.
Is professional installation recommended?
Yes — full-vehicle coilover kit with electronic components. Professional installation by a qualified suspension shop is strongly recommended.
