Light From the Vents — A Different Look, a Different Angle

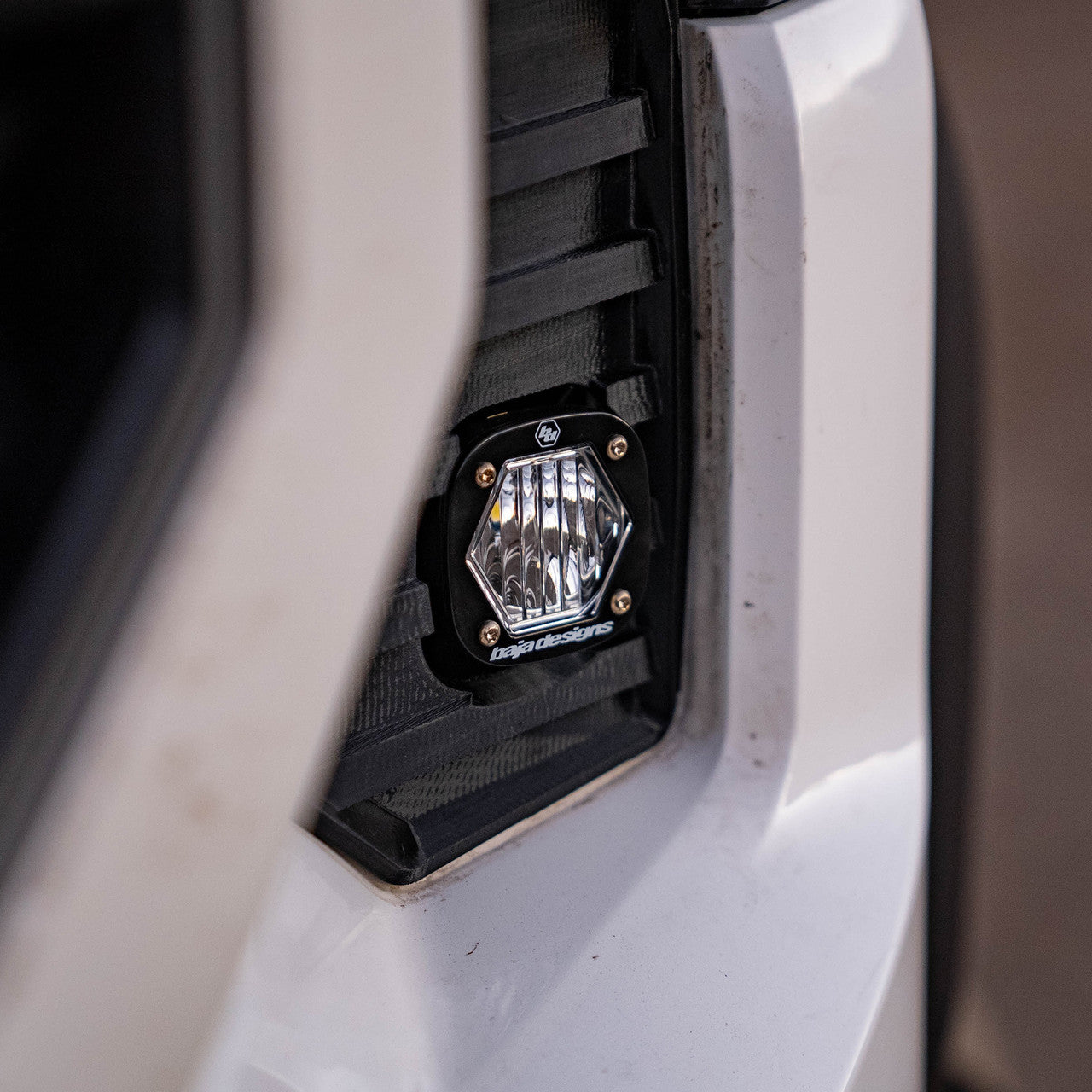

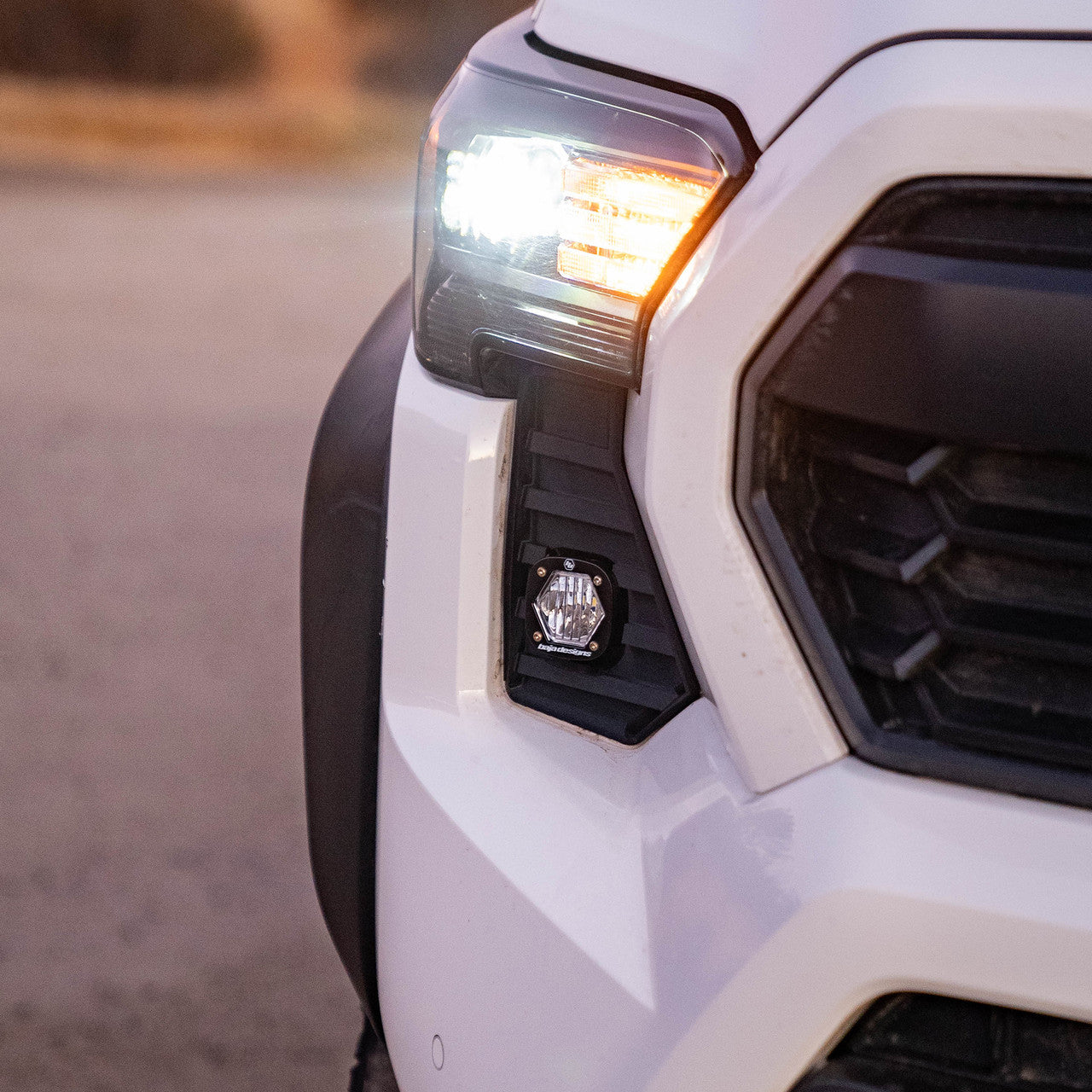

The Baja Designs S1 Vent Kit takes a different approach to auxiliary lighting on the 2024+ Toyota Tacoma. Instead of mounting in the grille opening or on the A-pillars, the S1 lights slot into the lower bumper vent area using custom replacement mounting plates that swap out the factory plastic parts. The result is a lighting position that fills a different zone than typical kits — lower, wider, and forward — giving you a unique combination of near-field illumination and zone 4 reach that complements other lighting setups or stands alone.
Each S1 light produces 2,320 lumens through a Wide Cornering optic at 20W, built for the broad spread that lower-mounted lights do best. The replacement vent plates integrate cleanly into the factory bumper without cutting or permanent modification. Wiring harness and all hardware are included for a complete installation. MoistureBlock sealing and uService field-replaceable optics round out the package. Backed by Baja Designs' 30-day money-back guarantee and limited lifetime warranty.

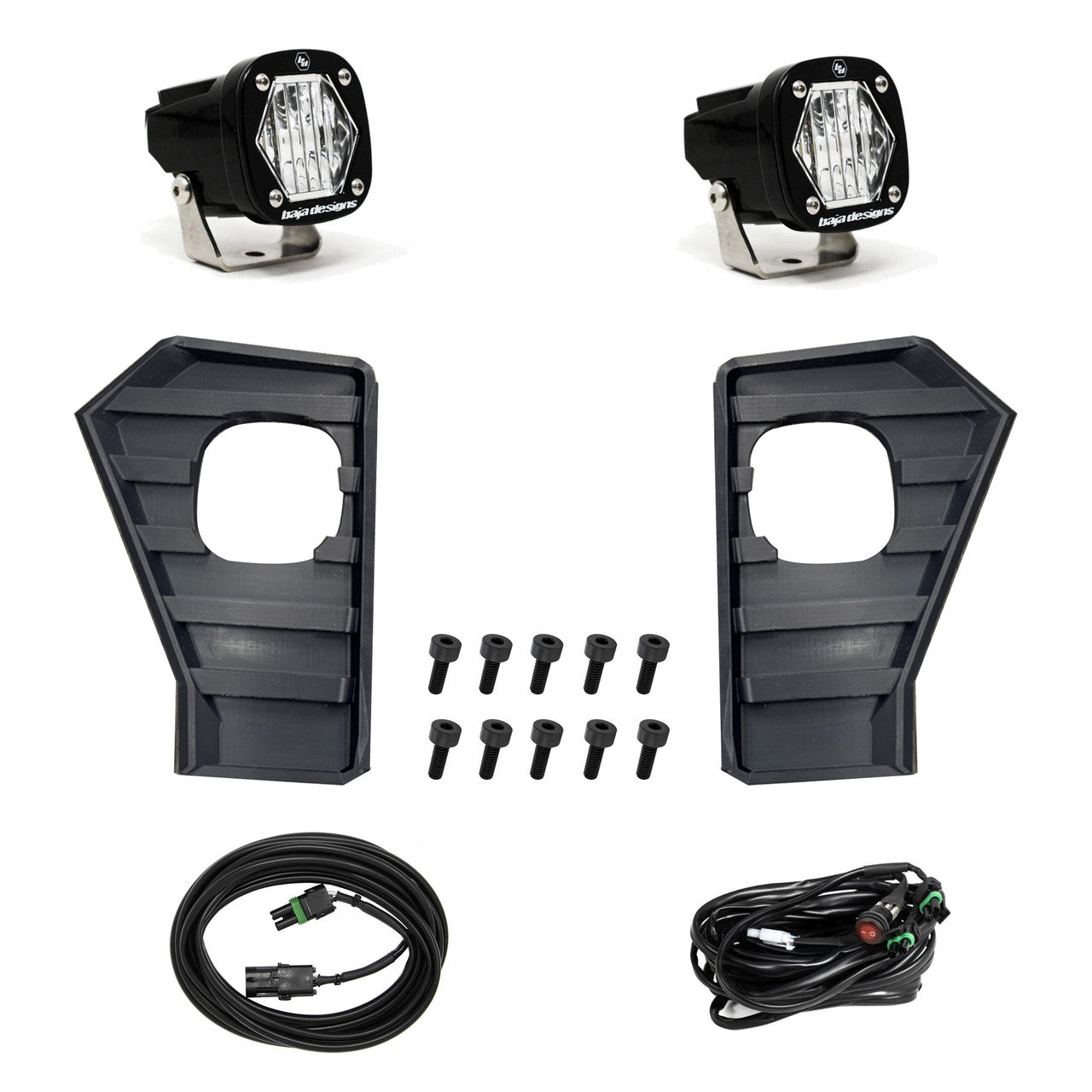

Kit Includes
- (2x) S1 Lights — Clear Wide Cornering optic
- (2x) Replacement vent mounting plates (replace factory plastic vent covers)
- (1x) Wiring harness
- All necessary mounting hardware
S1 Specifications (per light)
- Raw Lumens: 2,320
- Optic: Wide Cornering Clear
- Power: 20W / 1.42A @ 13.8V
- Zones Illuminated: 1-4
- Waterproof: Yes — MoistureBlock sealed, submersible
- Lenses/Optics: Field-replaceable (uService)
- Warranty: Limited Lifetime
Fitment

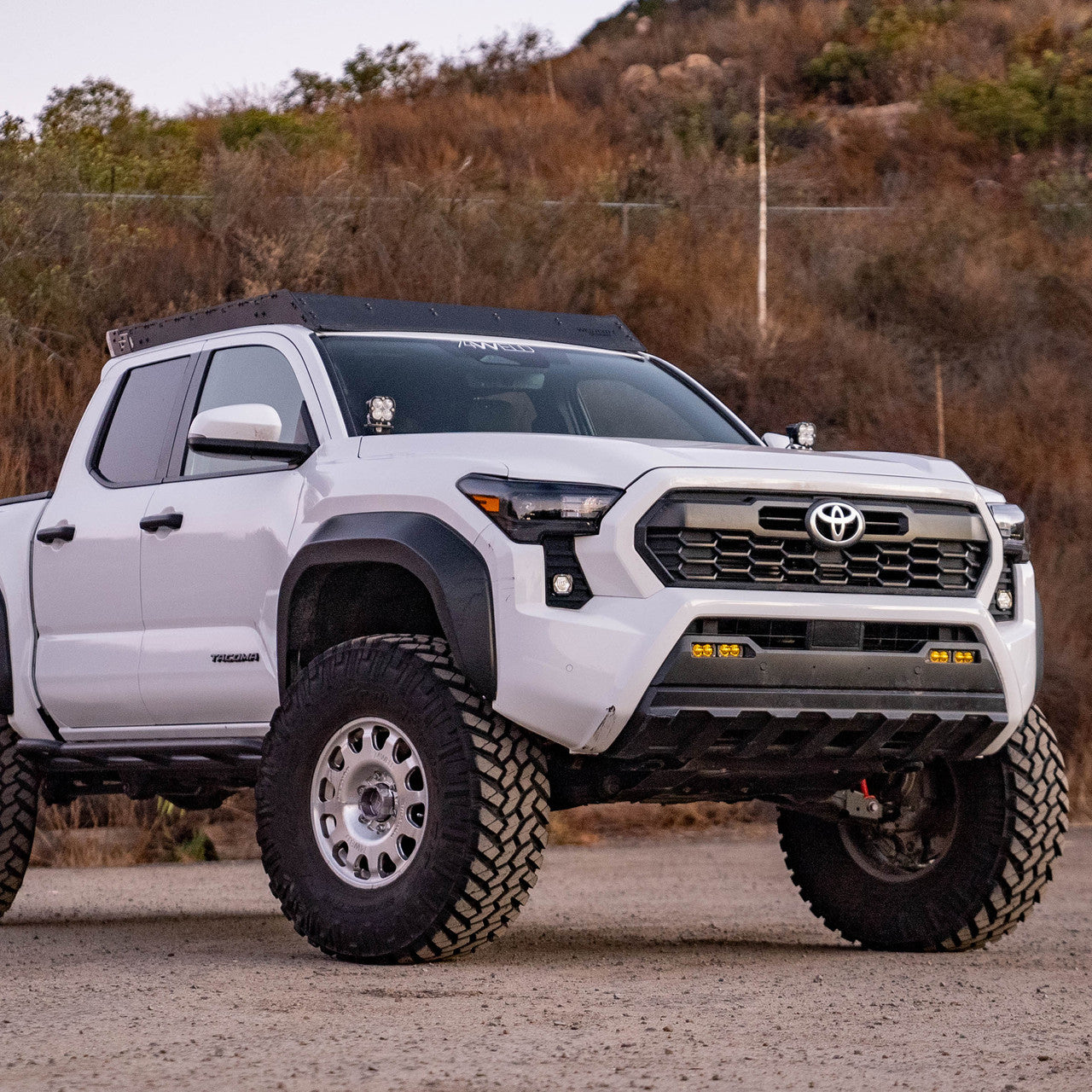

Fits: 2024+ Toyota Tacoma. Replaces factory lower bumper vent covers. No permanent modifications required.
FAQ
How is this different from the grille kit or fog light replacements?
The S1 Vent Kit mounts in the lower bumper vent area — a different position than grille-mounted or fog light replacement kits. It provides near-field and zone 4 illumination from a lower angle, making it a good complement to A-pillar or grille lights or a standalone option if those positions are already occupied.
Do I need to cut or modify the bumper?
No — the kit includes replacement vent mounting plates that swap out the factory plastic vent covers. No drilling, no cutting, no permanent modification.
Does this include a wiring harness?
Yes — the complete kit includes a wiring harness and all mounting hardware. Plug-and-play installation.
What is uService?
uService means the S1's lenses and optics are field-replaceable. If you want to change the beam pattern or replace a damaged lens, you swap just the lens assembly without removing the light from the mount.
