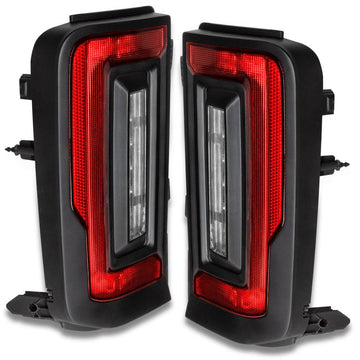

2021 2022 2023 Bronco Flush LED Tail Lights
Oracle lighting is debuting some pretty interesting aftermarket tail lights for the 2021 2022 2023 Ford Bronco. These lights are not only aesthetically pleasing, but they are an improved design for those hitting the off road trails hard.
Protruding out significantly less than the factory tail lights, this low-profile design helps avoid potential damage while trail riding. These Ford Bronco tail lights feature an attractive design and functional LED lighting elements including high-powered reverse lights and unique signature perimeter lighting

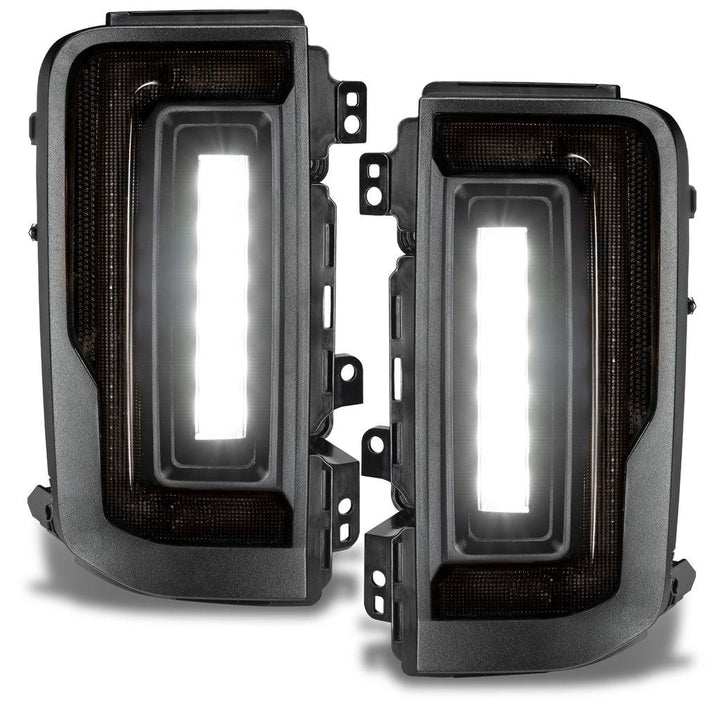

No more problems backing up at night because these LED reverse lights are basically a pair of LED light bars mounted into the tail light which will provide over 8,000 Lumens of rear-facing illumination.

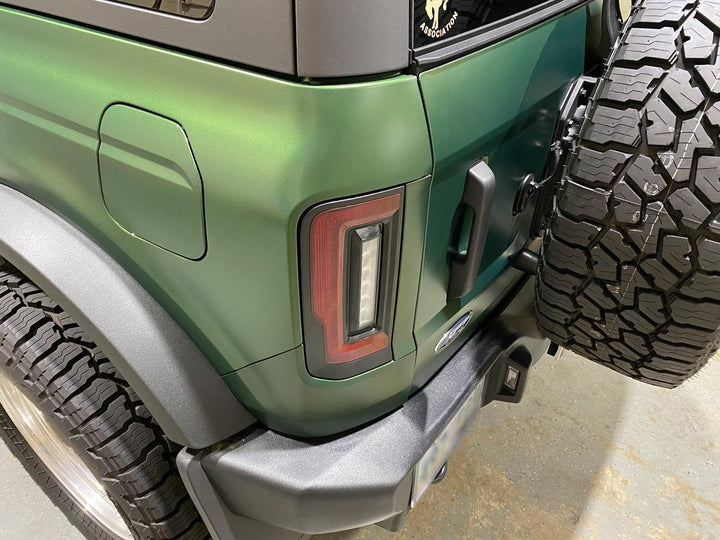

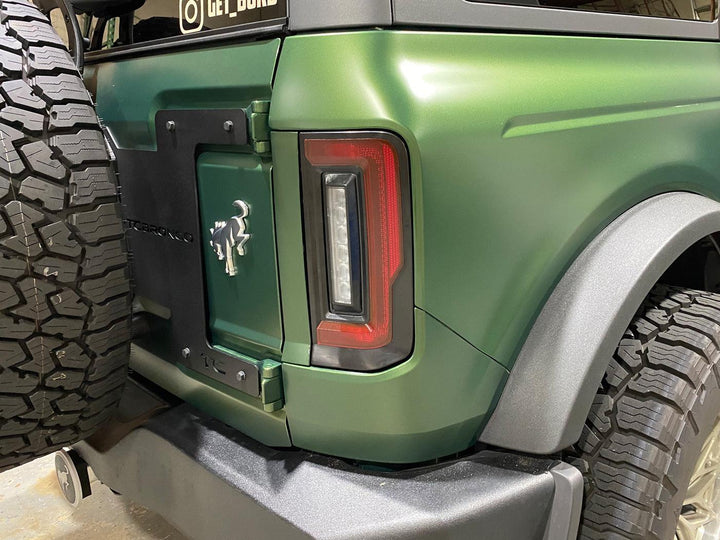

This innovative design wraps tightly around the truck. Because of the nearly flush wrap-around design, the lighting can be visible from any rear angle, making it a unique solution for the Bronco. These flush tail lights provide improved aesthetics and functional LED lighting features including high-powered reverse lights and signature perimeter lighting.
As you can see in the animation below, these lights wrap tightly to the vehicle body providing a "Flush" mount design which not only looks great but is functional as well.
- Modern Sleek Design and Styling
- Flush mounted to avoid damage to light
- 60W high-powered LED reverse lights
- Signature perimeter lighting
- Easy “Plug-&-Play” installation *Factory LED tail light equipped vehicles require additional FORSCAN programming
- Compatible with 21 Offroad Magic Reverse on Demand Harness
- Dark Smoke and other overlays available
- Amber / White Turn Signals Available (for original LED equipped vehicles)
- Fits ALL Broncos except Raptor
- 1 Year Warranty
Installation and Overview
Damaging factory tail lights on trails is not an uncommon issue for owners who often off-road their Broncos. The factory design protrudes out several inches past the body which creates unnecessary exposure to trees, boulders, and other obstacles on tight trails. Examples below:

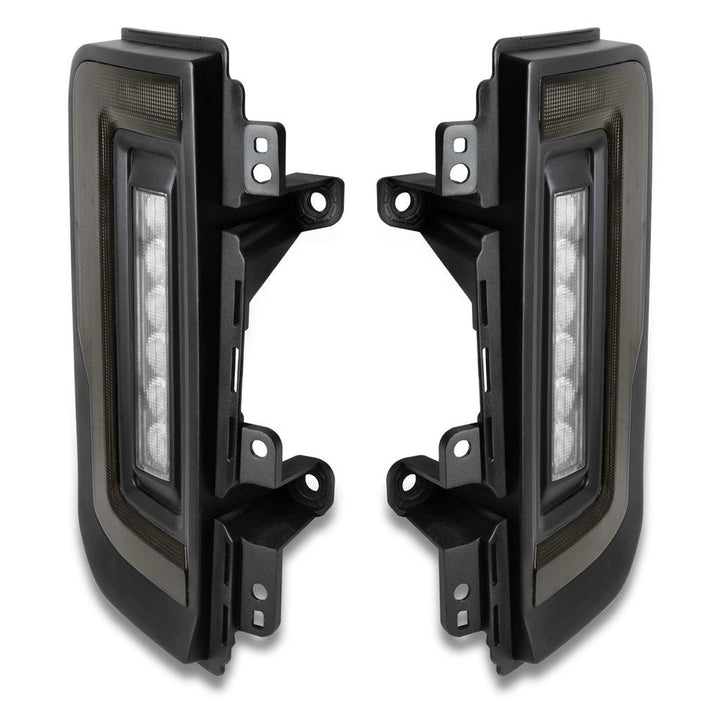

The frame of the ORACLE Lighting Flush Mount LED Tail Light for the Ford Bronco is tight to the body panel reducing exposure and vulnerability. This difference is demonstrated in the animation below.
Even if you don't off-road your Bronco often, these lights provide plenty of innovative features and unique styling -- which make them an awesome mod for any Bronco owner. Gain sleek styling that compliments the original body lines and tons of innovative features. With the superior quality and durability that ORACLE Lighting is known for, these tail lights are the perfect upgrade for your Bronco!
Forscan Programming Information for OEM LED Tail Light Equipped Vehicles:
Module: BdyCM Module Configuration - (Not the AsBuilt Module)
- Rear LED Turn Outage - Disabled
- Right Rear Stop & Position Lamp Usage - Stop and Turn
- Right Rear Turn Lamp Usage - Not Used
- Left Rear Stop & Position Lamp Usage - Stop and Turn
- Left Rear Turn Lamp Usage - Not Used
- 2021 + Ford Bronco with Factory Halogen Tail Lights
- 2021 + Ford Bronco w/ LED *Will Require ForScan Flash
- Will not fit Bronco Sport
- Will not fit Bronco Raptor
