8 Channels, 120A, and Full RGB Control — the Switch Panel That Does It All

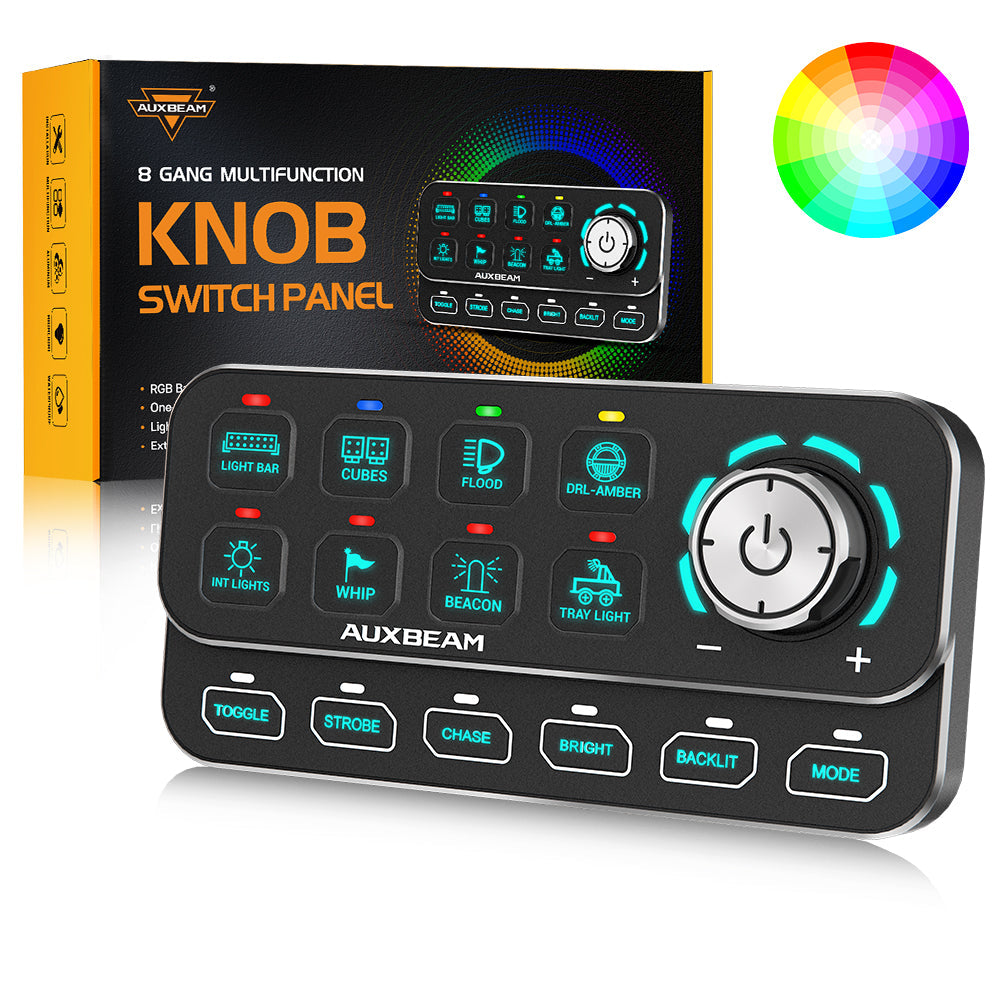

The Auxbeam KS-80 Knob RGB Switch Panel is a complete lighting control center in a single dash-mounted unit. Eight channels of solid-state relay output give you 120A total capacity with zero mechanical wear — enough to run light bars, rock lights, fans, air compressors, and anything else on your build. Each channel is independently configurable across four modes (Toggle, Momentary, Pulsed, SOS), and the rotary knob panel lets you dim individual outputs or sync everything at once.
The RGB backlit panel adjusts to any color and brightness level, keeping your dash consistent day or night. Four external triggers wire directly into your factory signals — high beams, reverse, brake, and hazard — so your aux lighting reacts automatically without manual input. DRL auto-start connects to your ACC line and brings your lights up with the ignition. Add the optional wireless remote and you can manage everything from up to 200 feet away, without returning to the cab.
Key Features
-
120A Solid-State Load System: 3x30A + 4x20A + 1x10A — no mechanical relays, no wear points
-
One-Touch All Sync: Toggle all 8 channels on simultaneously, or trigger strobe or chase mode across every connected device at once
-
Master Dimming: Dim individual lights, sync multiple channels at one brightness, or control fan speeds
-
4 External Triggers: High beam, reverse, brake, and hazard — factory signal integration for automated aux lighting
-
4 Modes per Channel: Toggle (constant on), Momentary (hold-on), Pulsed (strobe), SOS
-
DRL Auto-Start: Connect to 0-terminal — lights on with ACC ignition, no extra steps
-
RGB Panel Backlight: Rotary knob with full color and brightness adjustment
-
Optional Wireless Remote: Up to 200ft range for exterior, camp, or work lighting control
- 3-Year Warranty

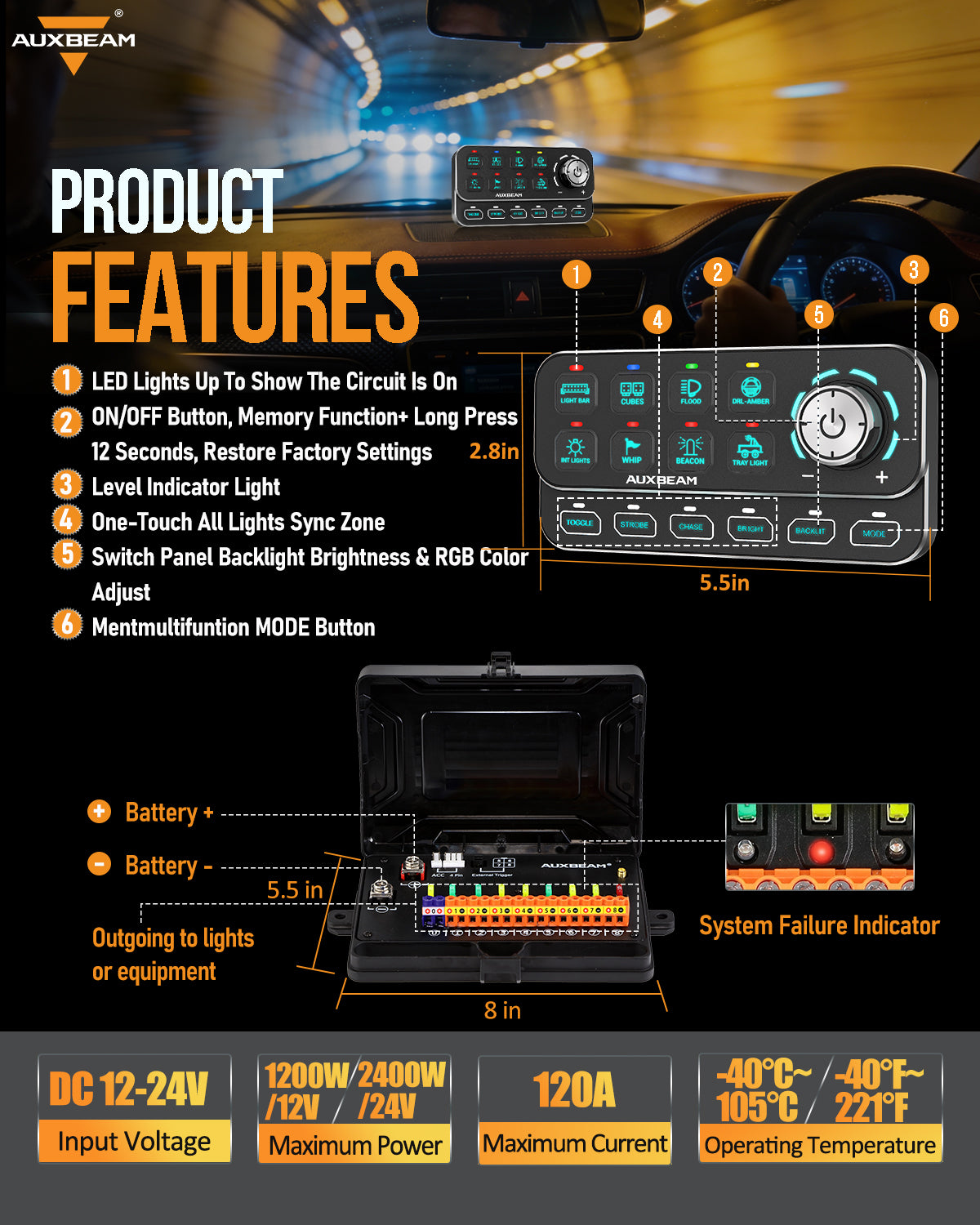

Specifications
- Voltage Input: DC 12-24V
- Max Current: 120A | Rated Current: 100A
- Output Configuration: 3x30A + 4x20A + 1x10A (8 channels)
- Relay Type: All-Solid-State
- Modes: Toggle / Momentary / Pulsed / SOS
- External Triggers: 4 (High Beam, Reverse, Brake, Hazard)
- Remote Range: Up to 200 ft (optional remote)
- Panel Backlight: RGB adjustable
What's in the Box
- KS-80 Knob Switch Panel
- Wiring harness
- Mounting hardware
- Extension cable (if selected variant)
- Wireless remote controller (if selected variant)
FAQ
Is this compatible with 12V and 24V systems?
Yes — the KS-80 operates on DC 12-24V and is compatible with both standard automotive and larger truck/equipment electrical systems.
Do I need the remote controller?
No — the panel controls all 8 channels directly. The optional remote is useful if you want to manage exterior or camp lighting without returning to the cab.
How does it handle if a channel is overloaded?
The solid-state relay system provides built-in protection. Unlike mechanical relays, solid-state relays respond instantly to overcurrent conditions without physical failure points.
Can I use this to control accessories other than lights?
Yes — the KS-80 can control any 12-24V accessory within the channel's rated current, including fans, air compressors, winches (check amp draw), and other electrical loads.
