Eibach-Tuned Damping for the Grenadier — Precision-Matched to Pro-Lift Springs

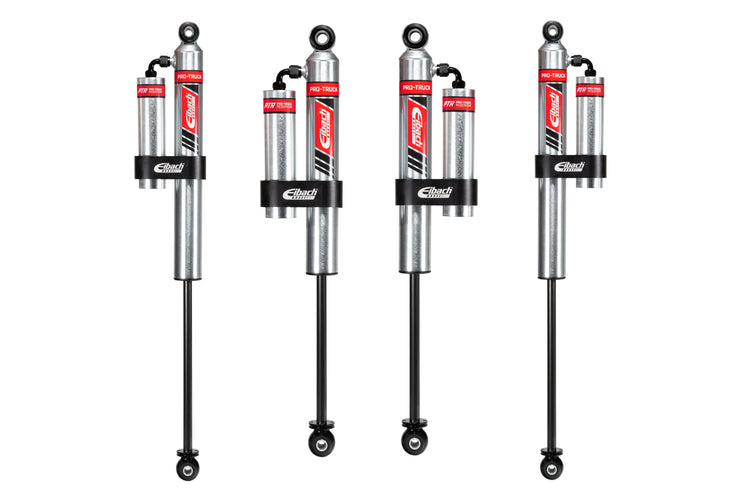

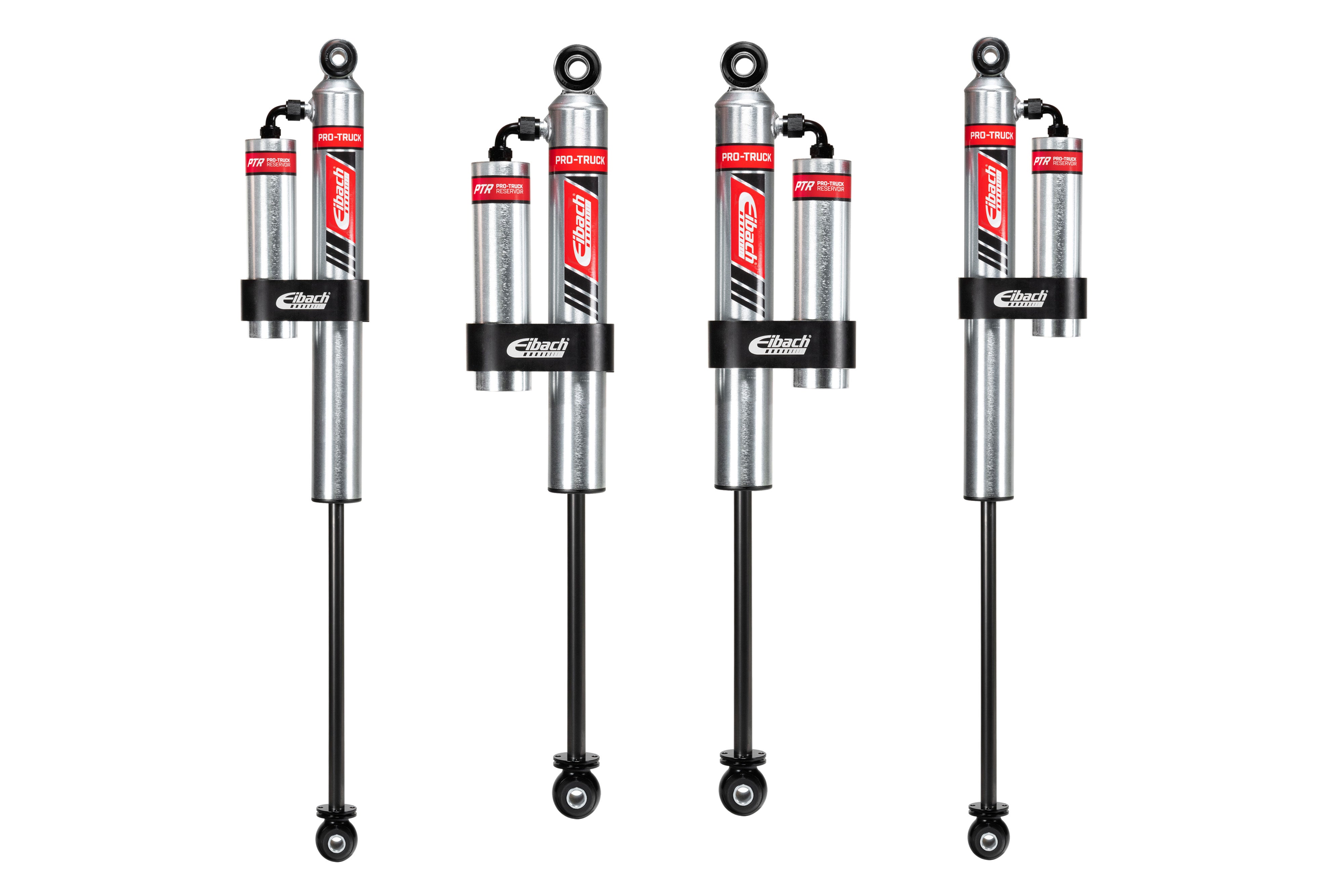

The Eibach PRO-DAMPER Kit is a complete 4-shock set (2 front, 2 rear) engineered specifically for the 2024+ INEOS Grenadier. Where generic shocks are tuned to a compromise, Eibach's PRO-DAMPER shocks are precision-tuned to work in concert with their Pro-Lift Kit springs — delivering the damping response, rebound control, and ride compliance that the spring rate demands. The result is a suspension system that behaves as a matched set rather than a mix of mismatched components.
The front shocks accommodate 0-2.5" of lift; the rear accommodates 0-1.5". Rear shocks are side-specific and labeled. Note: consult the installation manual regarding factory driveshaft clearance when changing ride height.
Specifications
- Part number: E60-34-001-02-22
- Contents: Set of 4 shocks (2 front, 2 rear)
- Front lift range: +0 to +2.5"
- Rear lift range: +0 to +1.5"
- Rear shocks: Side-specific, labeled
- Warranty: 2-year Eibach limited warranty
Pairs With
-
Eibach Pro-Lift Kit Springs — PRO-DAMPER shocks are precision-tuned to match Eibach's spring rates. Running these together is the intended configuration.
- Also compatible with PRO-KIT and SPORTLINE spring applications within the supported lift range.
Installation Note
Rear shocks are side-specific — check labels before installing. Consult the Eibach instruction manual for guidance on factory driveshaft clearance at your target ride height. A change in ride height can affect driveshaft angle.
Fitment
Fits: 2024-2026 INEOS Grenadier SUV and Quartermaster 3.0L 6-Cylinder Turbo 4WD (all trims).
FAQ
Do I need to run these with Eibach springs?
Technically no, but PRO-DAMPER shocks are precision-tuned to match Eibach's spring rates. Running them together gives you the damping response they were designed to deliver. Using them with a different spring rate will still be an improvement over OEM, but the matched-set benefit is lost.
How much lift do these support?
Front shocks accommodate 0-2.5" of lift; rear accommodates 0-1.5". This aligns directly with the Eibach Pro-Lift Kit spring lift range.
Are the rear shocks interchangeable side-to-side?
No — rear shocks are side-specific and come labeled. Install them on the correct side.
Will changing ride height affect the driveshaft?
Potentially. Eibach advises consulting the instruction manual for proper guidance on driveshaft clearance at your intended lift height. This is a standard consideration for any suspension lift on a 4WD platform.
What does the warranty cover?
Two years against factory defects in material and workmanship (excluding coatings) under normal use and operating conditions on passenger cars and light-duty trucks.
