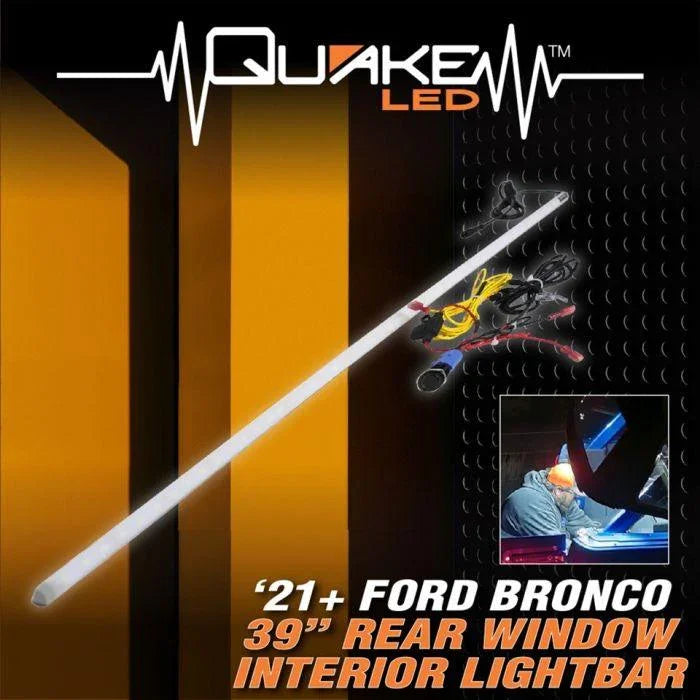

Quake 39" LED Interior Cargo Area Light Bar
- DIY installation
- Quick connectors allow for easy disconnecting when removing top completely
- 1500 lumen output
- ALL Components included!
Let’s be honest about the cargo area lighting in Broncos – it’s not even close to sufficient lighting. With a rear seat that blocks the stock dome light, you’re better off keeping a lightsaber in your back pocket for those times you actually need it. But for those of us who don’t have this luxury, the Mad Lighting Scientists at Quake LED have come to the rescue with the ultimate and complete Bronco cargo area LED lighting solution!
This easy-to-install, 39-inch Ford Bronco Rear Window LED Interior Lightbar mounts permanently to the lower section of the rear window to provide ample light both inside and out. This flexible Interior Lightbar easily bends to match the contour of the Bronco's rear window for that super polished, OEM look. The 3M UHB adhesive backing makes the install even more of a breeze. All parts included to install from start to finish, including a quality CNC precision metal push button switch with LED halo ring, fused wire harness, and ample wires to get the job done. Power your Interior Light Bar with our Dual Trigger Input Technology via a metal push button switch and/or hard-wire it to trigger off of another accessory to bypass the switch. Dual powering options!
At Quake LED we understand that our Broncos often bring us to remote places far away from convenience stores or delivery guys. With our design, you’ll never be stuck 50 miles away from a store looking for an uncommon remote battery to turn on your Interior Light Bar or trying to buy another remote control because your thin plastic remote is broken or lost.

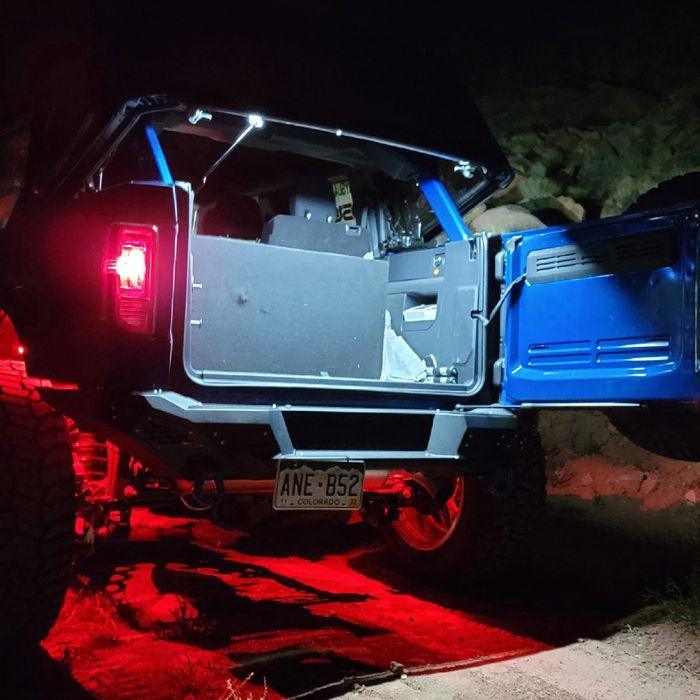

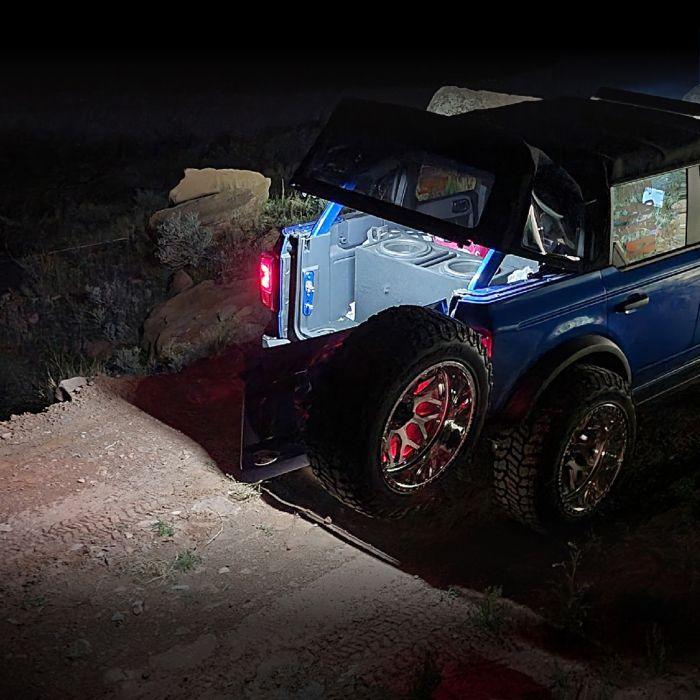

Perfect for: camping, tailgating, loading and unloading, cargo area repairs and more. If you own a Ford Bronco you NEED this very simple, easy-to-install rear window interior lighting upgrade!

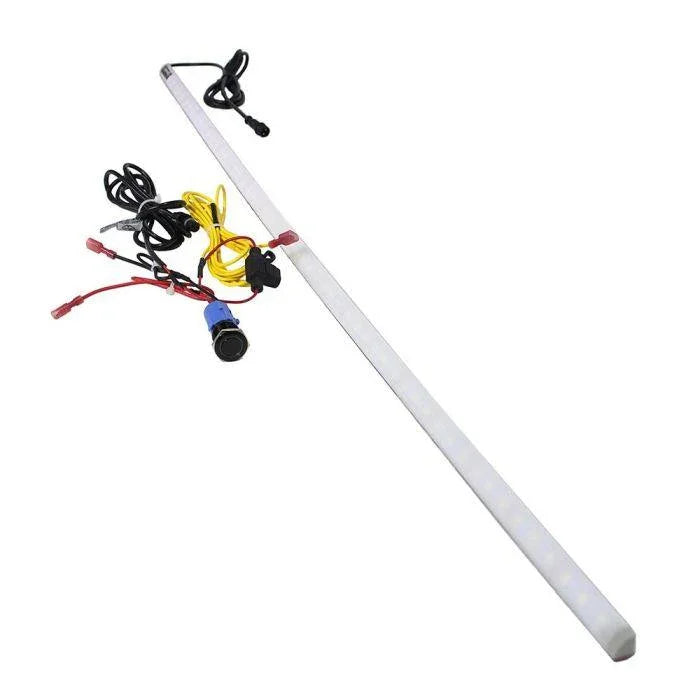

- Rear Window LED Interior Light Bar x 1

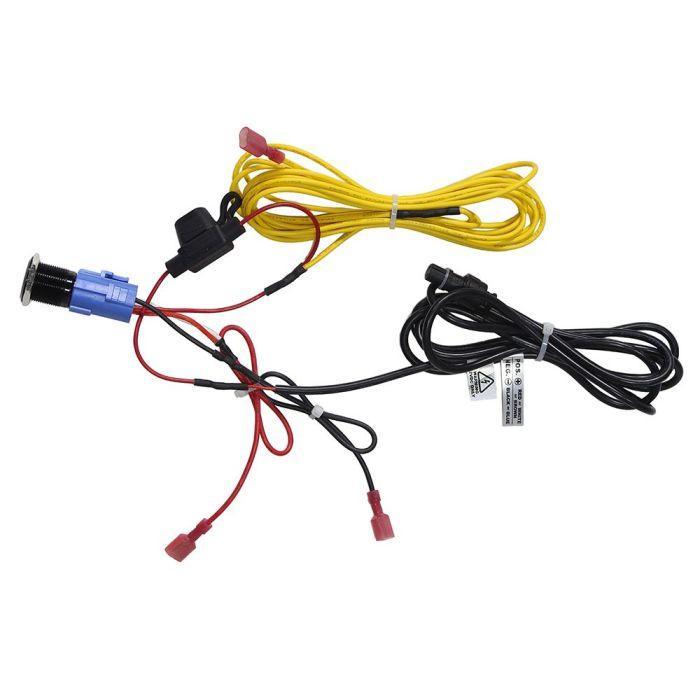

- Complete Wire Harness with Switch and Fuse x 1

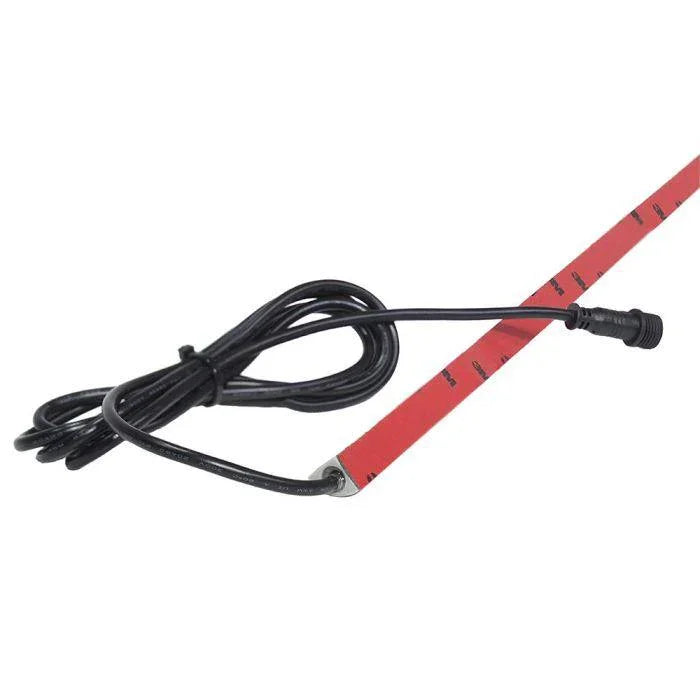

- 3M UHB Adhesive Tape x 1
- Cable Zip Ties x 12
- Black Window Wire Mount Clips x 5
- White Window Wire Mount Clips x 5
- T-Tap Quick Connectors x 3
- 10” Wire Loom x 1
- 5A Fuse x 1
- Installation instructions
Light Bar Specs:
- Power: 15 Watts
- Input Voltage: 12VDC
- LED QTY: 57 Diodes
- LED Type: High Intensity SMD 5050
- CCT: 6,000K
- Lumens: 1,500
- Current Amp Draw: 0.55A @12VDC (switched on setting)
- Light Bar Length: 39”

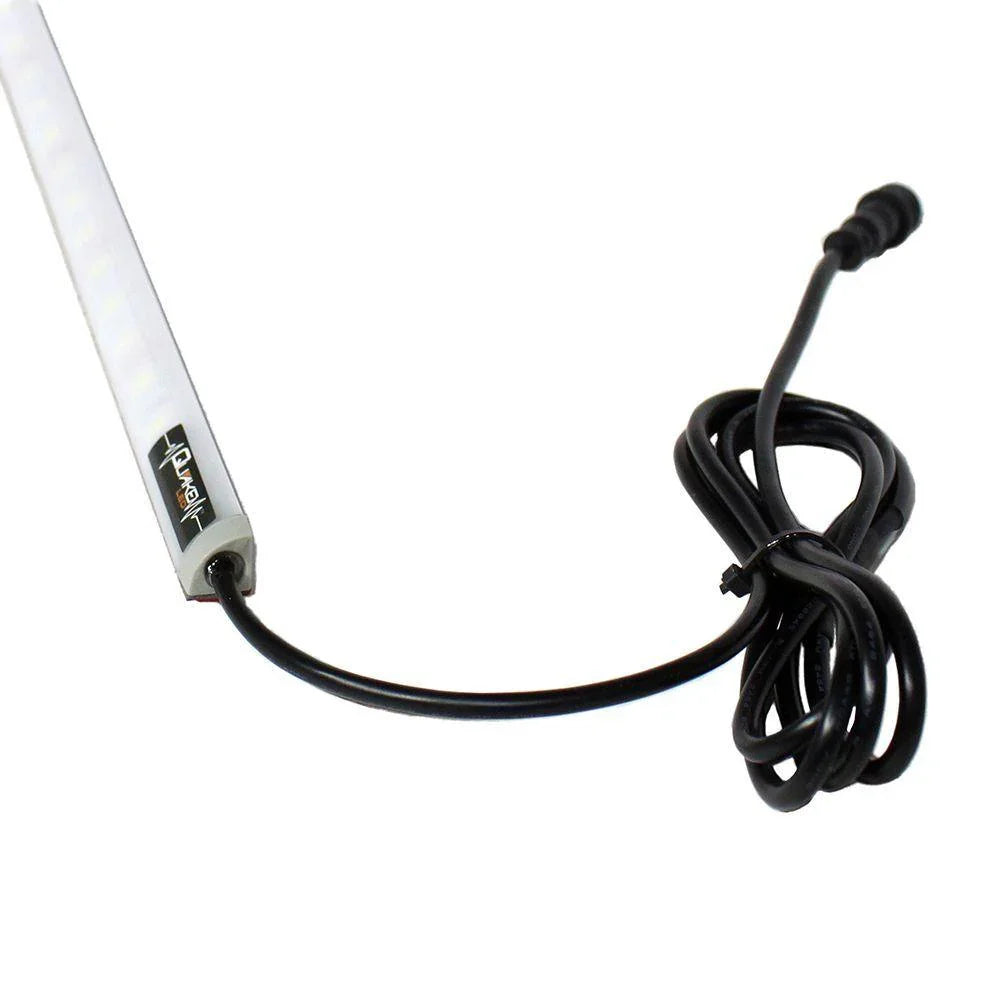

- Light Bar Wire Length: 60”
- Harness Wire Length: 70”
- Switch Function: Push Button On/Off

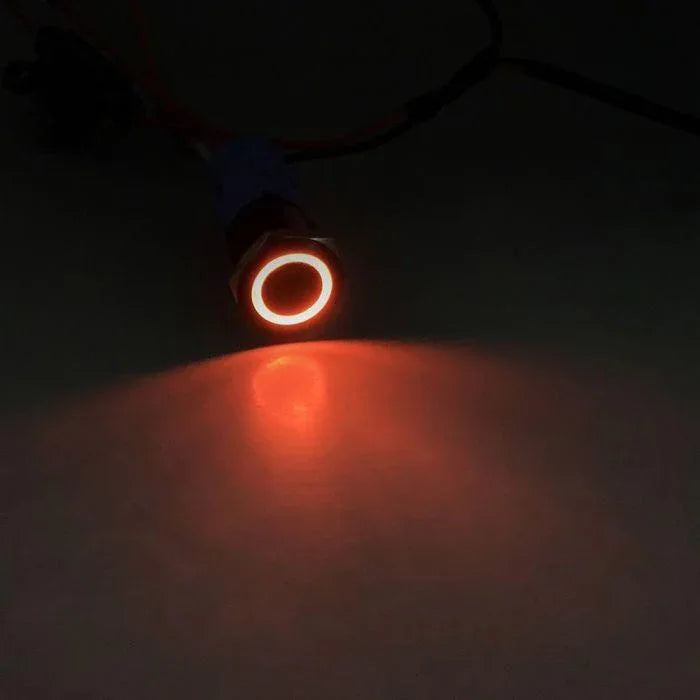

- Switch Illumination Color: Amber Halo
- Switch Housing Color: Black
- Switch Max Current: 5A @12VDC
- Switch Waterproof Rating: IP65
- Light Bar Waterproof Rating: IP65
- Lifespan: 10,000 Hours
- Operating Temp: -40F to 140F
- Light Bar Dimensions: 39 x 1.2 x 0.25” (300 x 30 x 6.5mm) L*W*H
- Light Bar Weight: 0.6lbs
- Installation Level: Beginner
- Installation Time: About 1 hour
- Tools Needed: Pliers, Flathead Screwdriver, Torx Drivers, Drill, ¾” Drill Bit
Our installation video of the Oracle cargo light, notes that instead of tapping into the 12v cigarette plug, you can tap into the interior cargo light as well.
